SKU: NK60/25-EU

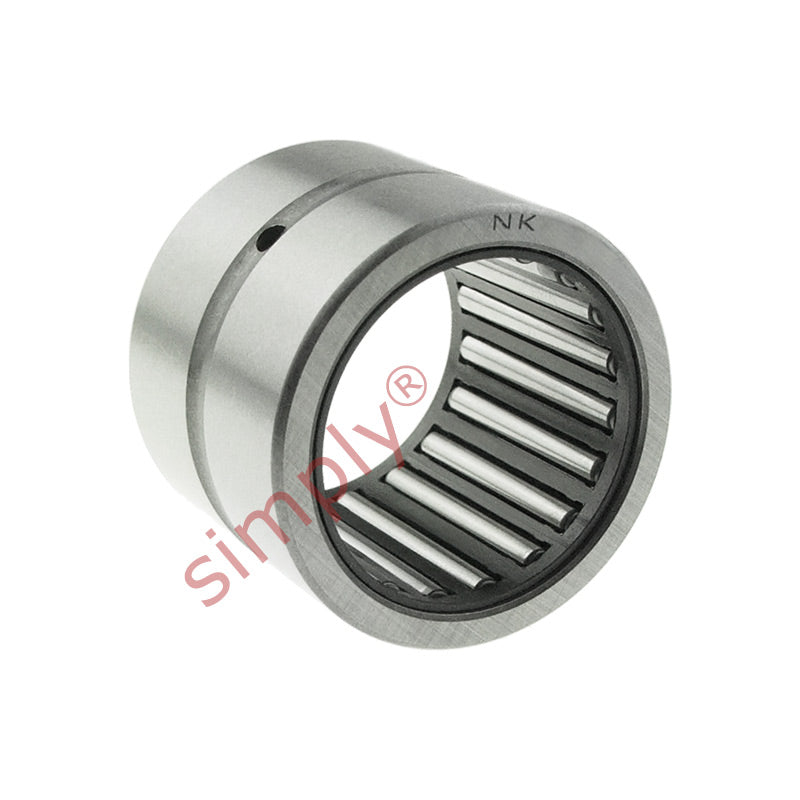

NK60/25 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 60x72x25mm
NK60/25 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 60x72x25mm
Regular price
€33,54
ex VAT
Regular price
Sale price
€33,54
ex VAT
In stock
Price Break
10+
€25,54
19+
€24,11
29+
€23,82
39+
€23,53
49+
€23,24
74+
€22,96
99+
€21,52
199+
€21,24
249+
€20,95
499+
€20,66
999+
€20,09
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 25mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 25mm |
| Dynamic load C | 41800 N |
| Static load Co | 96500 N |
| Fatigue load limit Pu | 12200 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| r1r2 | 0.6mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 190 g |
