SKU: NK60/25-MB

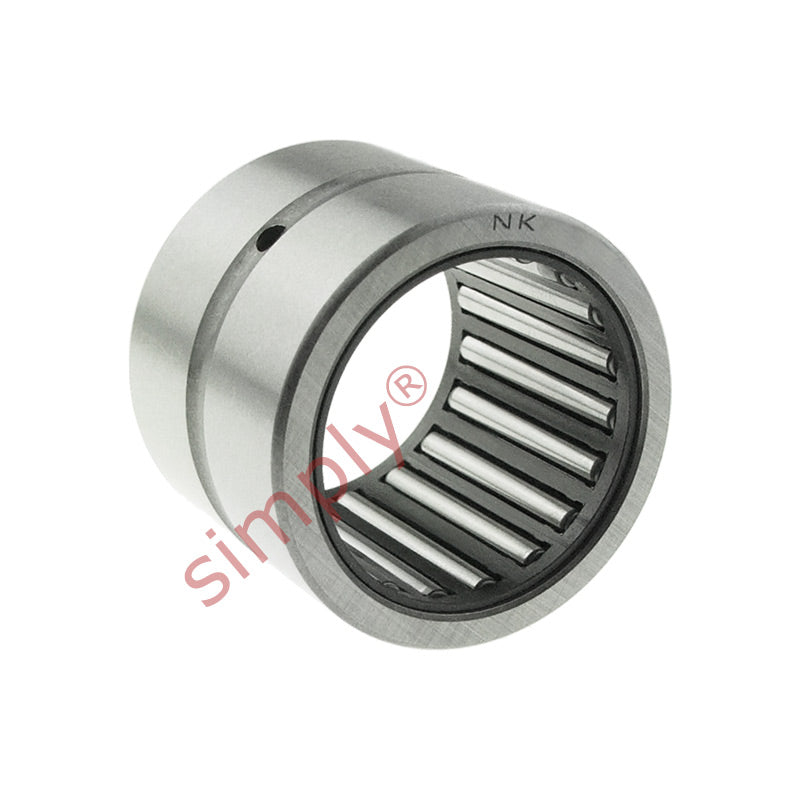

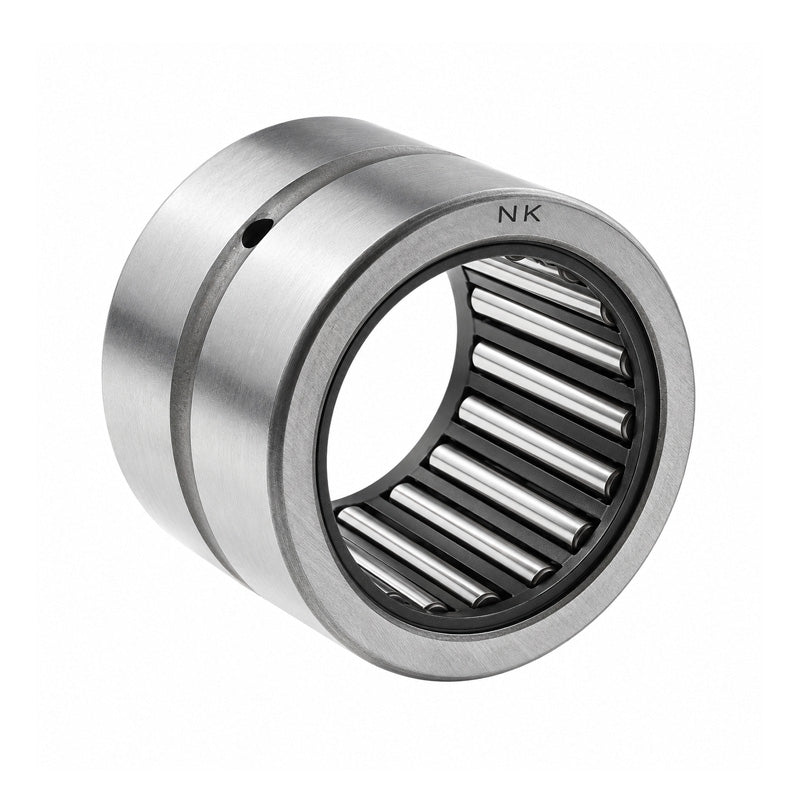

Major Brand NK60/25 Needle Roller Bearing With Flanges without Shaft Sleeve 60x72x25mm
Major Brand NK60/25 Needle Roller Bearing With Flanges without Shaft Sleeve 60x72x25mm
Regular price
€59,51
ex VAT
Regular price
Sale price
€59,51
ex VAT
In stock
Price Break
10+
€52,96
19+
€49,99
29+
€49,39
39+
€48,80
49+
€48,20
74+
€47,61
99+
€44,63
199+
€44,04
249+
€43,44
499+
€42,85
999+
€41,66
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 25mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 25mm |
| Dynamic load | 41800 N |
| Static load | 96500 N |
| Fatigue load limit Pu | 12200 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| r1r2 | 0.6mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 190 g |
