SKU: NK65/25-MB

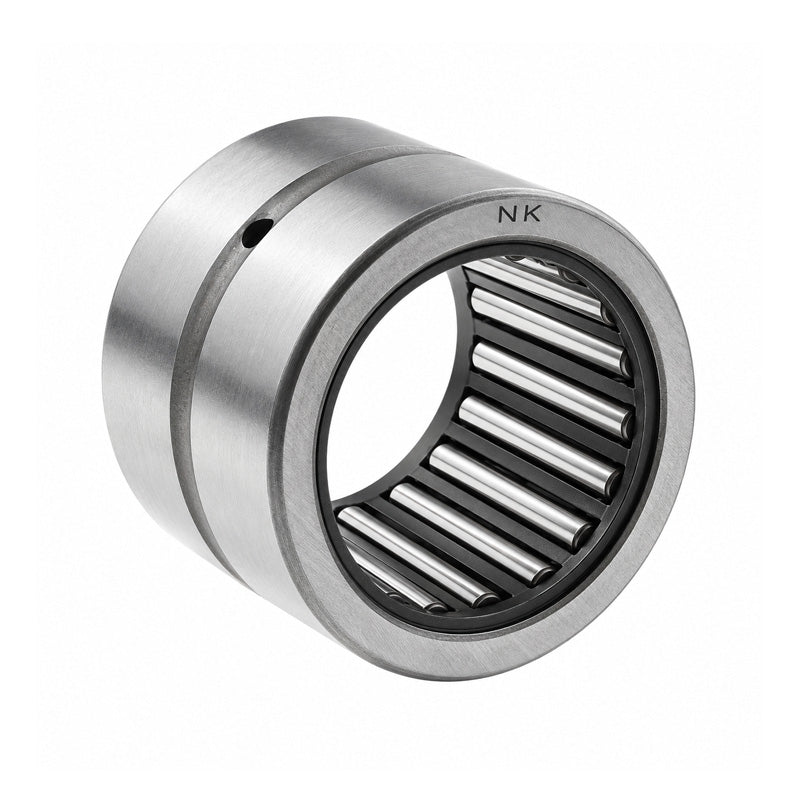

Major Brand NK65/25 Needle Roller Bearing With Flanges without Shaft Sleeve 65x78x25mm
Major Brand NK65/25 Needle Roller Bearing With Flanges without Shaft Sleeve 65x78x25mm
Regular price
€49,07
ex VAT
Regular price
Sale price
€49,07
ex VAT
In stock
Price Break
10+
€43,67
19+
€41,22
29+
€40,73
39+
€40,24
49+
€39,75
74+
€39,26
99+
€36,80
199+
€36,31
249+
€35,82
499+
€35,33
999+
€34,35
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 78mm
- Width:
- 25mm
Technical
Technical
| Fw | 65mm |
|---|---|
| D | 78mm |
| C | 25mm |
| Dynamic load | 44000 N |
| Static load | 104000 N |
| Fatigue load limit Pu | 13200 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| r1r2 | 0.6mm |
| Da max | 74mm |
| ra max | 0.6mm |
| Weight | 220 g |
