SKU: NK80/25R+1R70X80X25-NTN

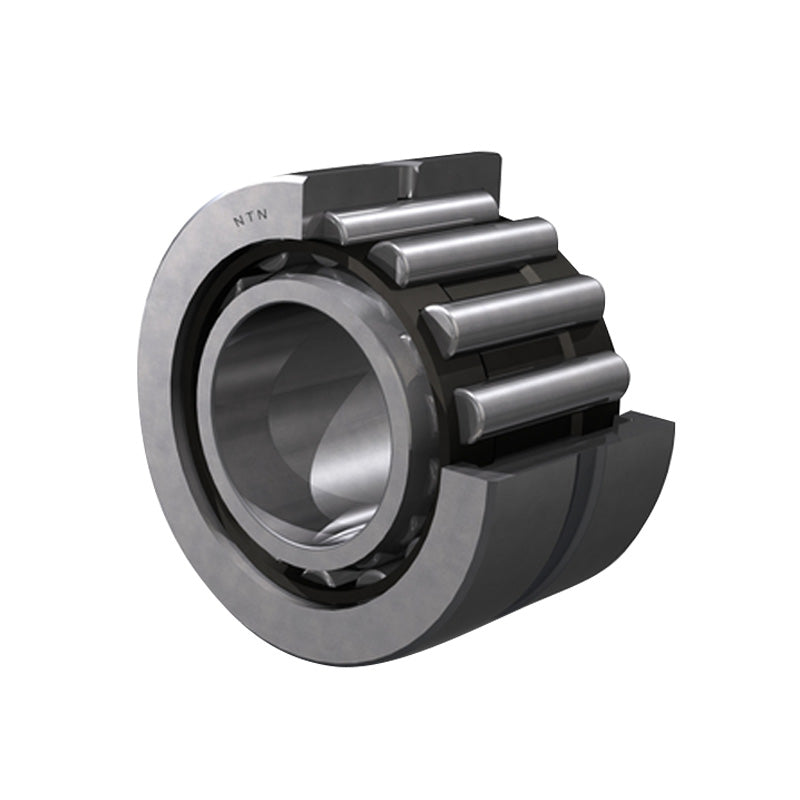

NTN NK80/25R-1R70X80X25 Machined Needle Roller Bearing with Shaft Sleeve 70x95x25mm - Allow 2-3 Days

NTN NK80/25R-1R70X80X25 Machined Needle Roller Bearing with Shaft Sleeve 70x95x25mm - Allow 2-3 Days
Regular price €77,65 ex VAT
Regular price Sale price €77,65 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,79
4+ €63,13
9+ €61,80
19+ €59,81
49+ €58,48
99+ €55,15
499+ €46,52
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 70mm
D - Outside diameter 95mm
C - Width of bearing, drawn cup or outer ring 25mm
F - Under roller diameter 80mm
rs - Minimum fillet radius 1mm
s - Max axial offset 0.8mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Inner ring reference 1R70X80X25
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 57 kN
C0r - Static load rating 119 kN
N - Grease lubrication limit speed 3300 tr/min
N - Oil lubrication limit speed 5000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 75mm
Da max - Outer ring maximum shoulder diameter 90mm
ras max - Maximum shaft & housing fillet radius 1mm
