SKU: NK95/36-EU

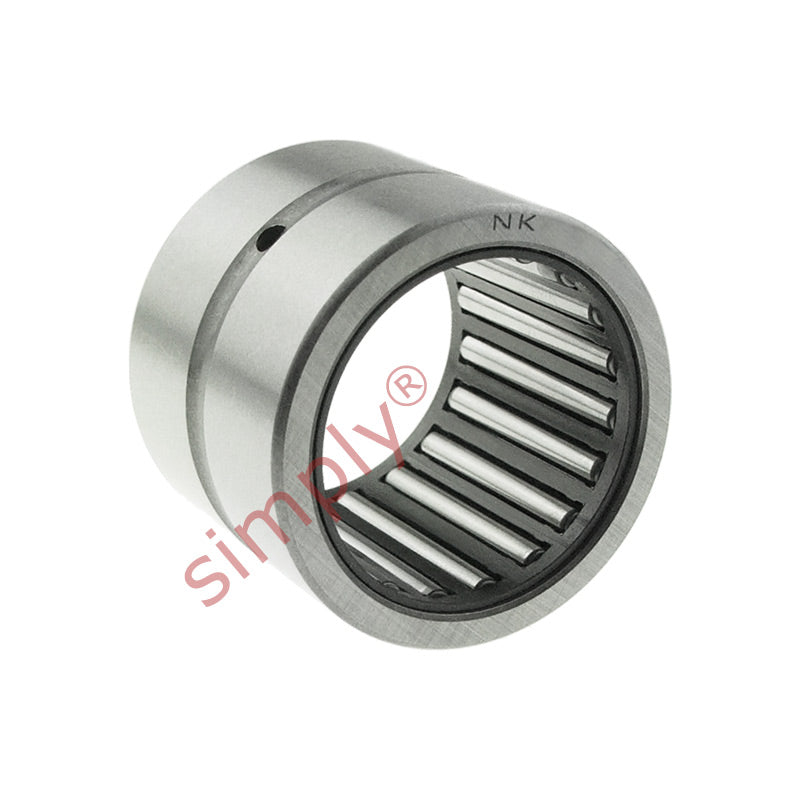

NK95/36 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 95x115x36mm
NK95/36 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 95x115x36mm
Regular price
€105,62
ex VAT
Regular price
Sale price
€105,62
ex VAT
In stock
Price Break
10+
€80,44
19+
€75,92
29+
€75,02
39+
€74,11
49+
€73,21
74+
€72,31
99+
€67,79
199+
€66,88
249+
€65,98
499+
€65,08
999+
€63,27
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 115mm
- Width:
- 36mm
Technical
Technical
| Fw | 95mm |
|---|---|
| D | 115mm |
| C | 36mm |
| Dynamic load C | 105000 N |
| Static load Co | 232000 N |
| Fatigue load limit Pu | 30500 N |
| Speed in grease | 3000 rpm |
| Speed in oil | 4300 rpm |
| r1r2 | 1mm |
| Da max | 110mm |
| ra max | 1mm |
| Seal | CR95x115x12CRW1R |
| Weight | 680 g |
