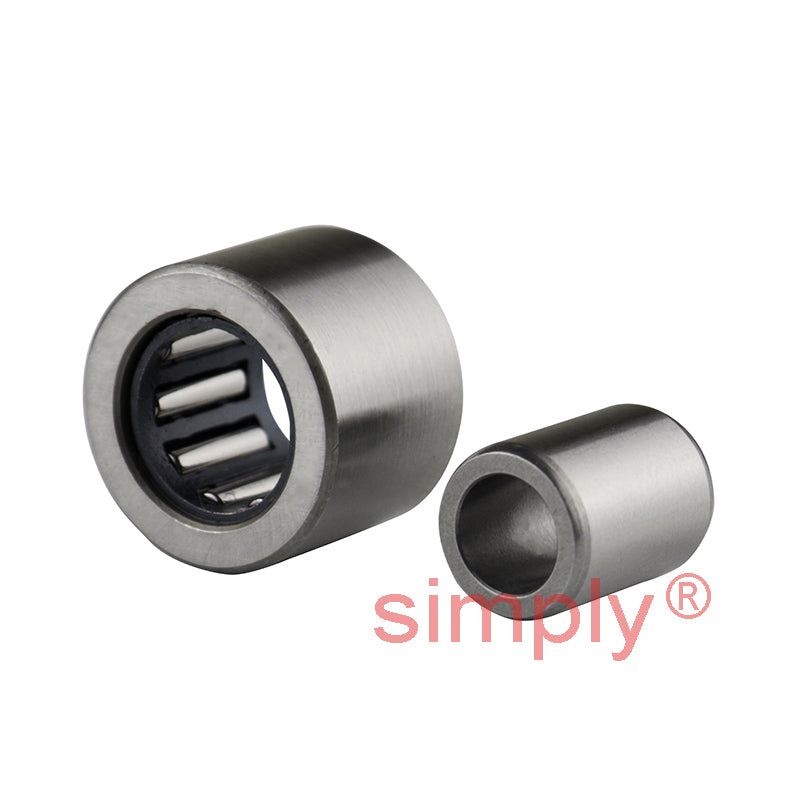

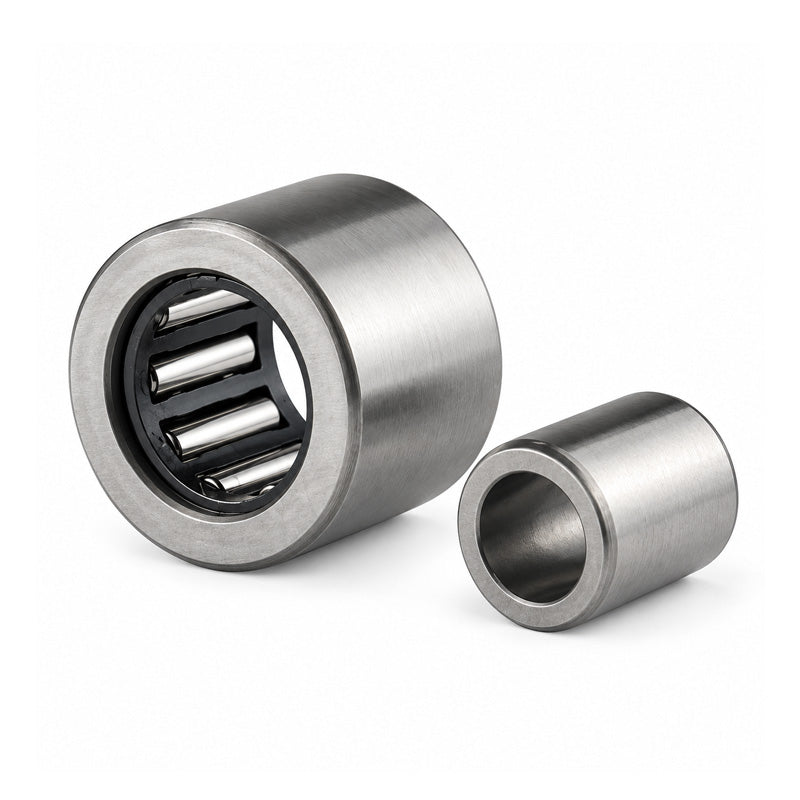

NKI10/16 Budget Needle Roller Bearing / Shaft Sleeve 10x22x16mm

Name: NKI10/16 Budget Needle Roller Bearing / Shaft Sleeve 10x22x16mm
Brand: Gen
SKU: NKI10/16-EU
Price: 13.15 EUR
Availability: InStock

€13,15 ex VAT

Sale Sold out

In stock

Price Break

10+ €10,01

19+ €9,45

29+ €9,34

39+ €9,22

49+ €9,11

74+ €9,00

99+ €8,44

199+ €8,32

249+ €8,21

499+ €8,10

999+ €7,87

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 10mm
Outside Diameter:: 22mm
Width:: 16mm

Technical

d	10mm
D	22mm
B	16mm
Dynamic load C	10200 N
Static load Co	12500 N
Fatigue load limit Pu	1530 N
Speed in grease	17000 rpm
Speed in oil	26000 rpm
F	14mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	12mm
Da max	20mm
ra max	0.3mm
