SKU: NKI10/20-MB

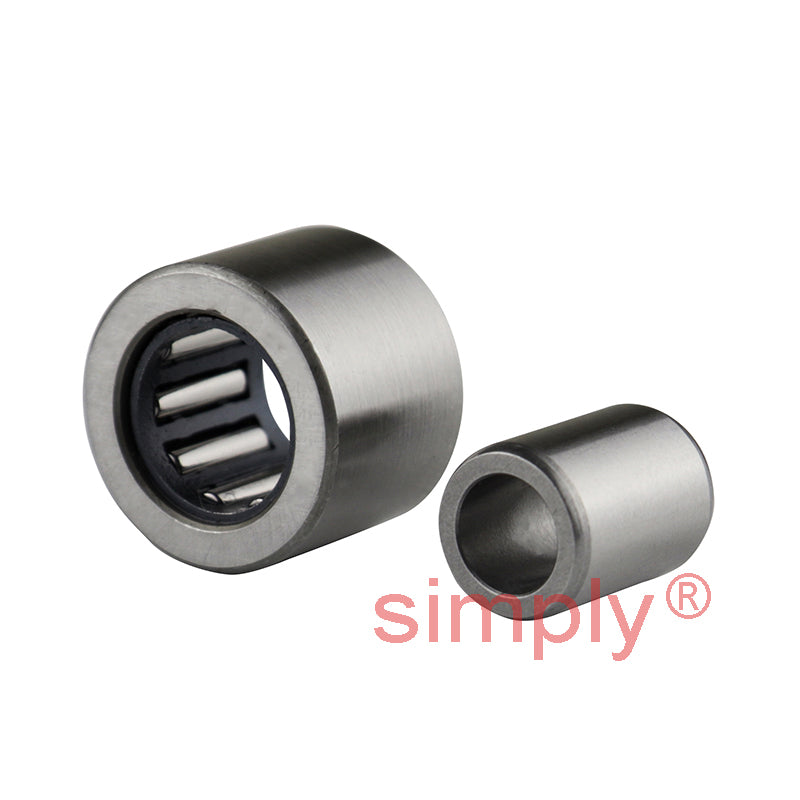

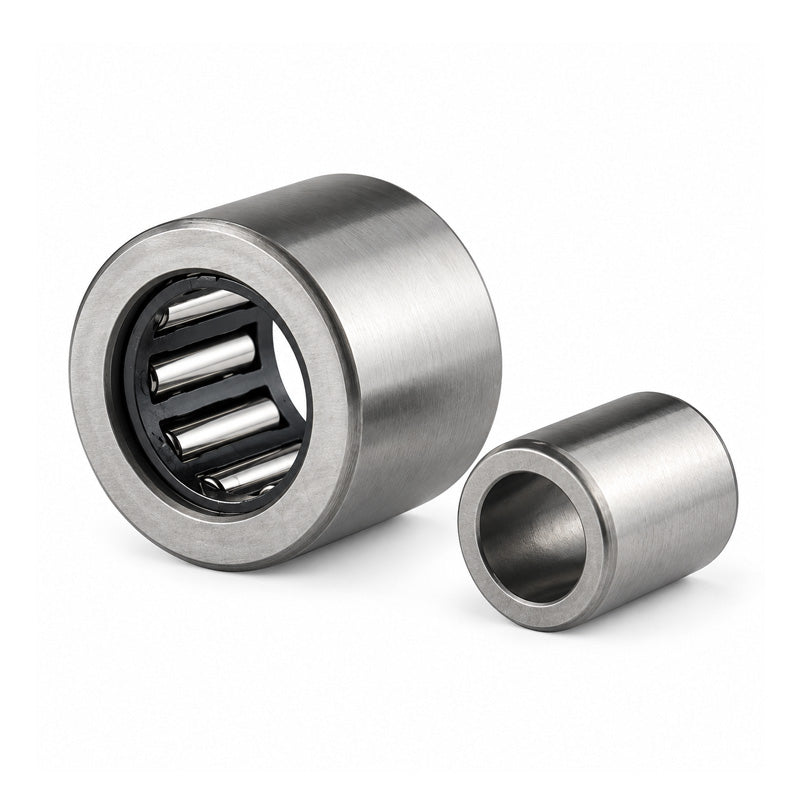

Major Brand NKI10/20 Needle Roller Bearing With Shaft Sleeve 10x22x20mm
Major Brand NKI10/20 Needle Roller Bearing With Shaft Sleeve 10x22x20mm
Regular price
€10,61
ex VAT
Regular price
Sale price
€10,61
ex VAT
In stock
Price Break
10+
€8,08
19+
€7,63
29+
€7,54
39+
€7,45
49+
€7,35
74+
€7,26
99+
€6,81
199+
€6,72
249+
€6,63
499+
€6,54
999+
€6,36
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 20mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 20mm |
| Dynamic load | 12800 N |
| Static load | 16600 N |
| Fatigue load limit Pu | 2080 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| F | 14mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
