SKU: NKI22/16-EU

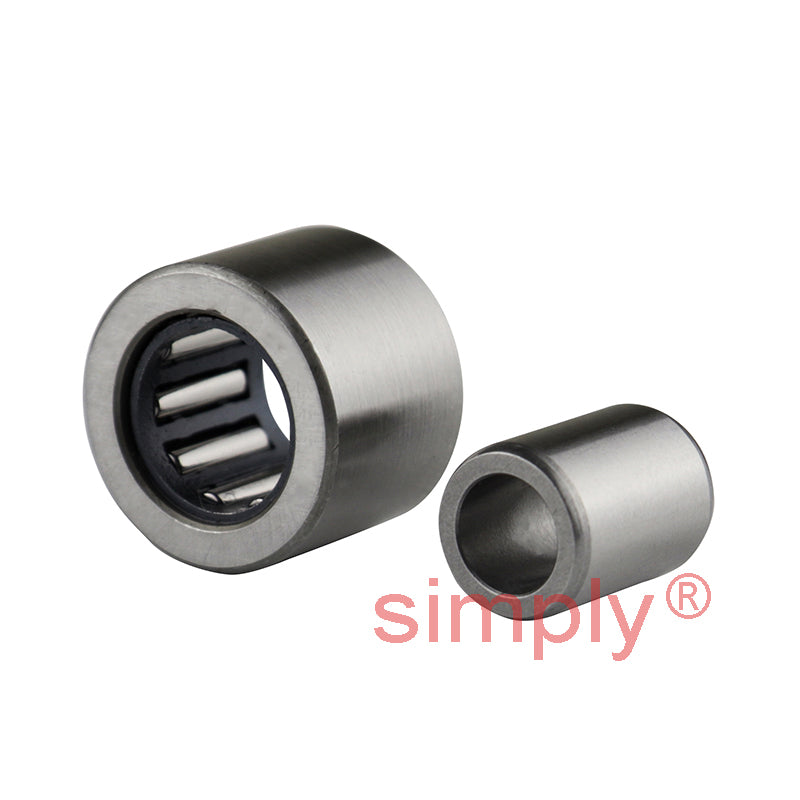

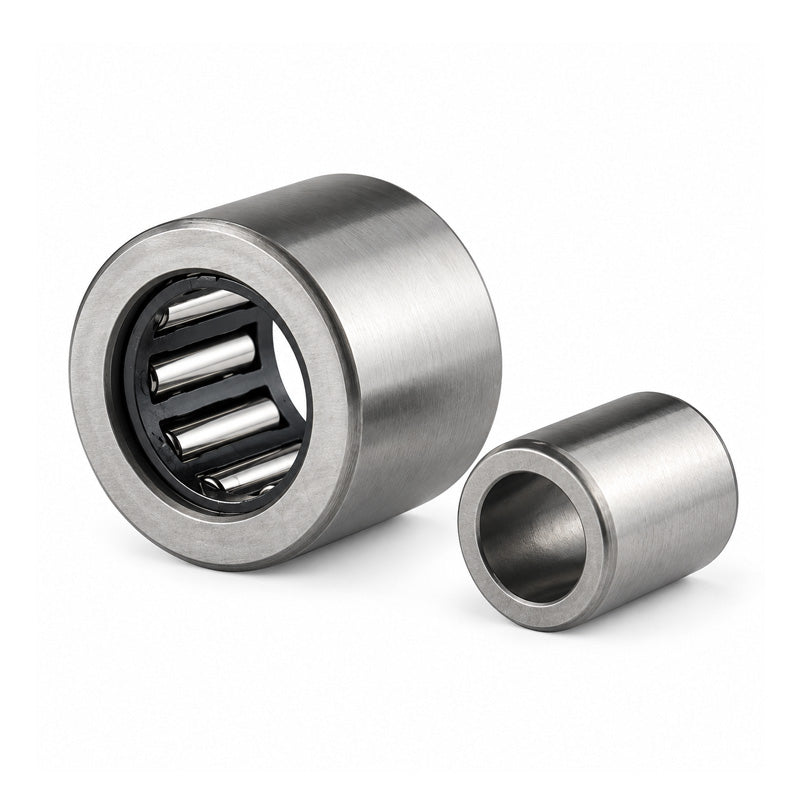

NKI22/16 Budget Needle Roller Bearing / Shaft Sleeve 22x34x16mm

Name: NKI22/16 Budget Needle Roller Bearing / Shaft Sleeve 22x34x16mm
Brand: Gen
SKU: NKI22/16-EU
Price: 8.07 EUR
Availability: InStock

€8,07 ex VAT

Sale Sold out

In stock

Price Break

10+ €6,15

19+ €5,80

29+ €5,74

39+ €5,67

49+ €5,60

74+ €5,53

99+ €5,18

199+ €5,11

249+ €5,04

499+ €4,98

999+ €4,84

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 22mm
Outside Diameter:: 34mm
Width:: 16mm

Technical

d	22mm
D	34mm
B	16mm
Dynamic load C	15700 N
Static load Co	26000 N
Fatigue load limit Pu	3200 N
Speed in grease	9500 rpm
Speed in oil	15000 rpm
F	26mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	24mm
Da max	32mm
ra max	0.3mm
