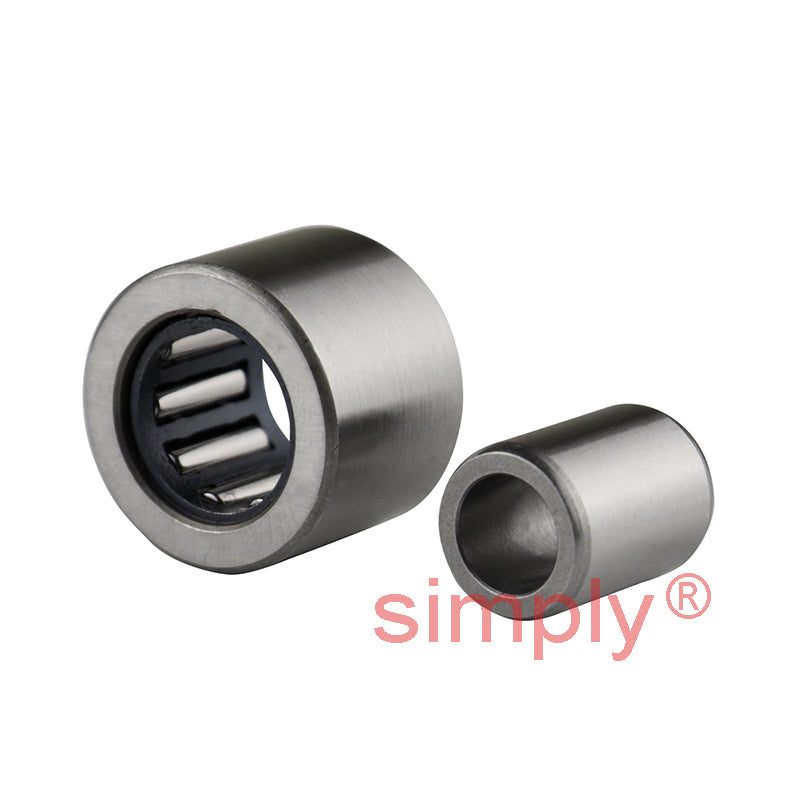

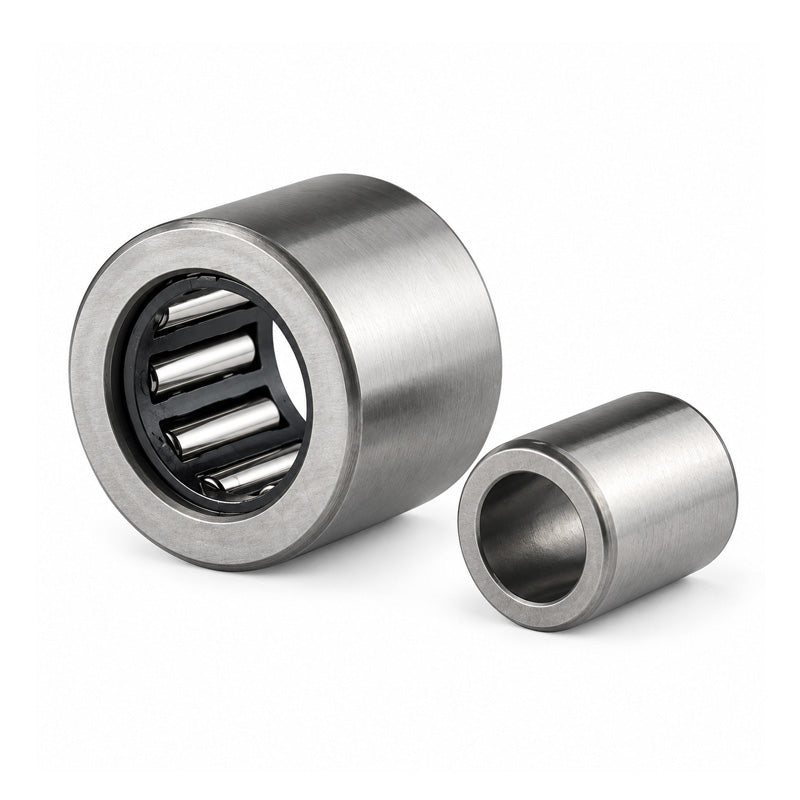

NKI22/20 Budget Needle Roller Bearing / Shaft Sleeve 22x34x20mm

Name: NKI22/20 Budget Needle Roller Bearing / Shaft Sleeve 22x34x20mm
Brand: Gen
SKU: NKI22/20-EU
Price: 9.86 EUR
Availability: InStock

€9,86 ex VAT

Sale Sold out

In stock

Price Break

10+ €7,51

19+ €7,09

29+ €7,01

39+ €6,92

49+ €6,84

74+ €6,75

99+ €6,33

199+ €6,25

249+ €6,16

499+ €6,08

999+ €5,91

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 22mm
Outside Diameter:: 34mm
Width:: 20mm

Technical

d	22mm
D	34mm
B	20mm
Dynamic load C	19400 N
Static load Co	34500 N
Fatigue load limit Pu	4300 N
Speed in grease	9500 rpm
Speed in oil	15000 rpm
F	26mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	24mm
Da max	32mm
ra max	0.3mm
