SKU: NKI30/20TN-EU

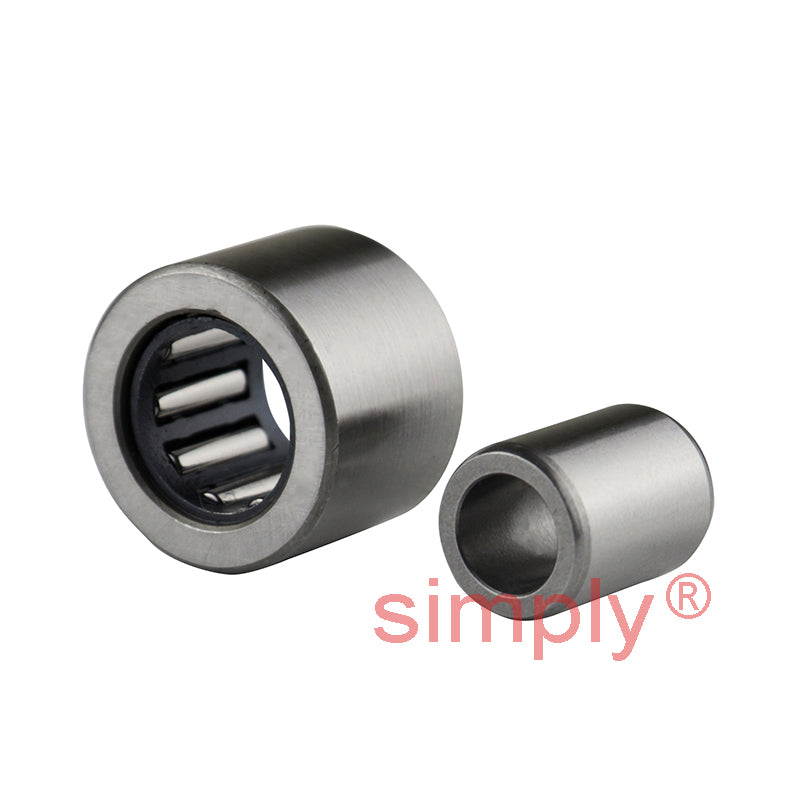

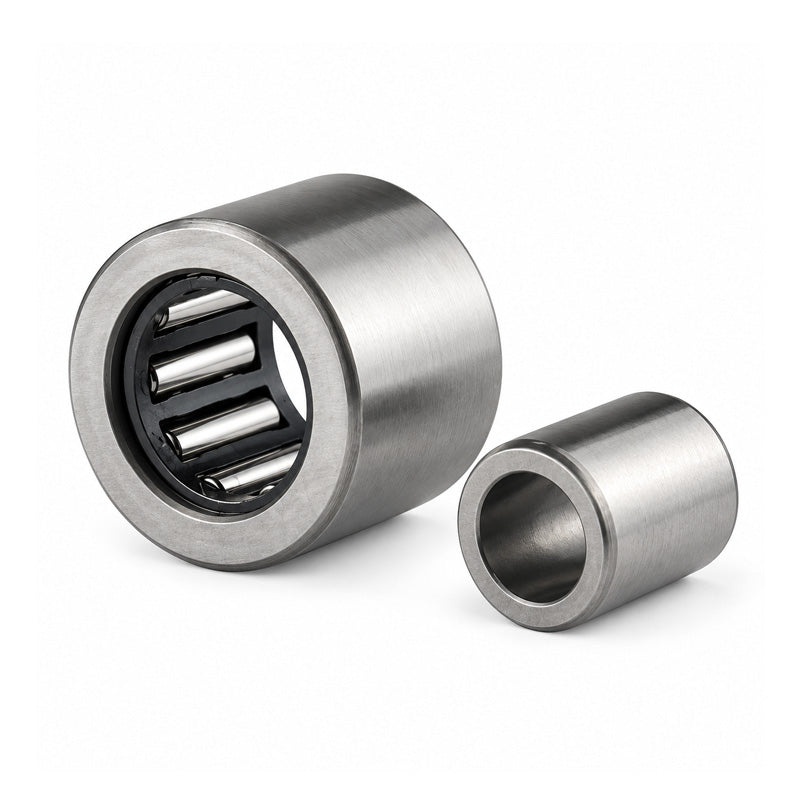

NKI30/20TN Budget Needle Roller Bearing / Shaft Sleeve 30x45x20mm

Name: NKI30/20TN Budget Needle Roller Bearing / Shaft Sleeve 30x45x20mm
Brand: Gen
SKU: NKI30/20TN-EU
Price: 9.08 EUR
Availability: InStock

€9,08 ex VAT

Sale Sold out

In stock

Price Break

10+ €6,92

19+ €6,53

29+ €6,45

39+ €6,37

49+ €6,29

74+ €6,22

99+ €5,83

199+ €5,75

249+ €5,67

499+ €5,59

999+ €5,44

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 45mm
Width:: 20mm

Technical

d	30mm
D	45mm
B	20mm
Dynamic load C	24600 N
Static load Co	45000 N
Fatigue load limit Pu	5700 N
Speed in grease	7500 rpm
Speed in oil	11000 rpm
F	35mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	32mm
Da max	43mm
ra max	0.3mm
