SKU: NKI35/20-EU

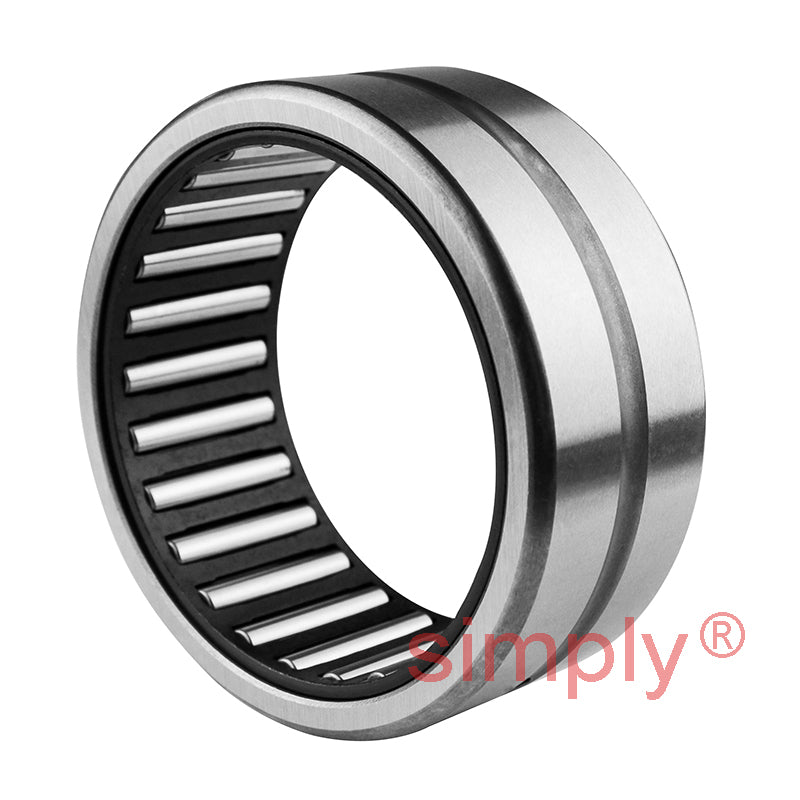

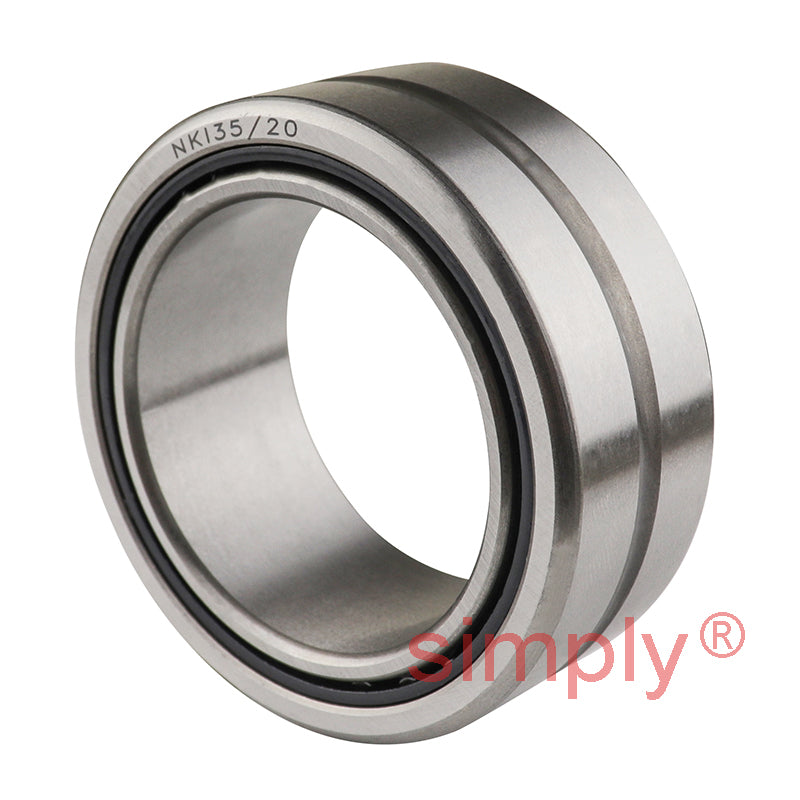

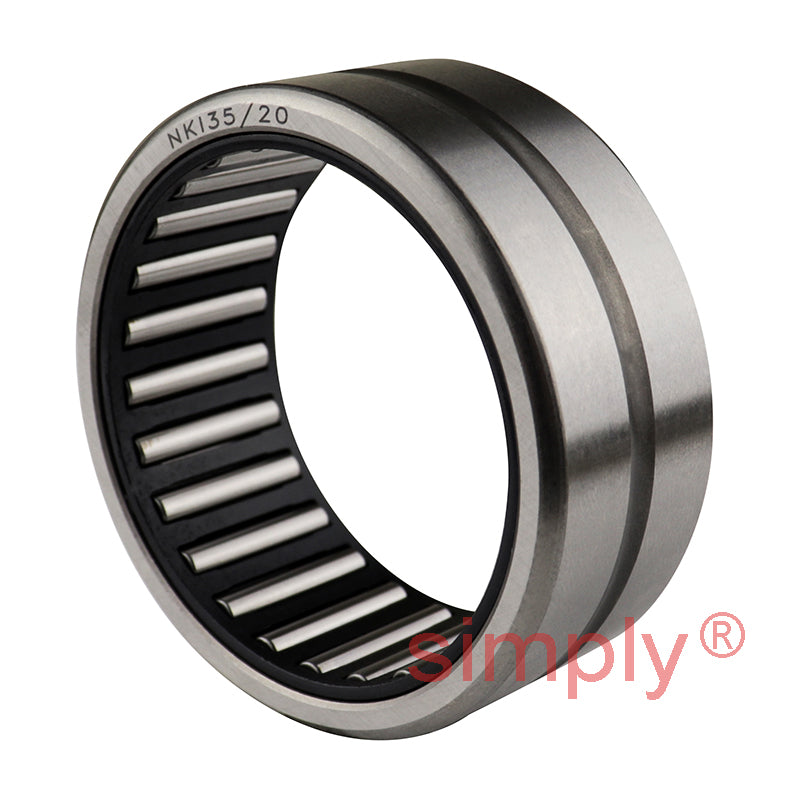

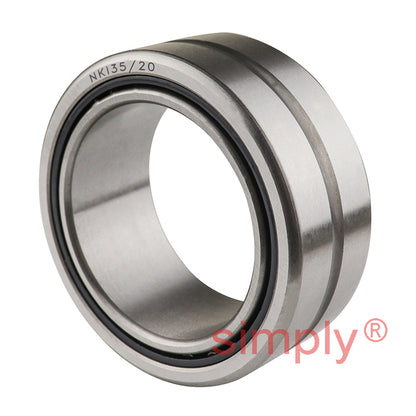

NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm

Name: NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm
Brand: Gen
SKU: NKI35/20-EU
Price: 10.40 EUR
Availability: InStock

€10,40 ex VAT

Sale Sold out

In stock

Price Break

10+ €7,92

19+ €7,48

29+ €7,39

39+ €7,30

49+ €7,21

74+ €7,12

99+ €6,68

199+ €6,59

249+ €6,50

499+ €6,41

999+ €6,23

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

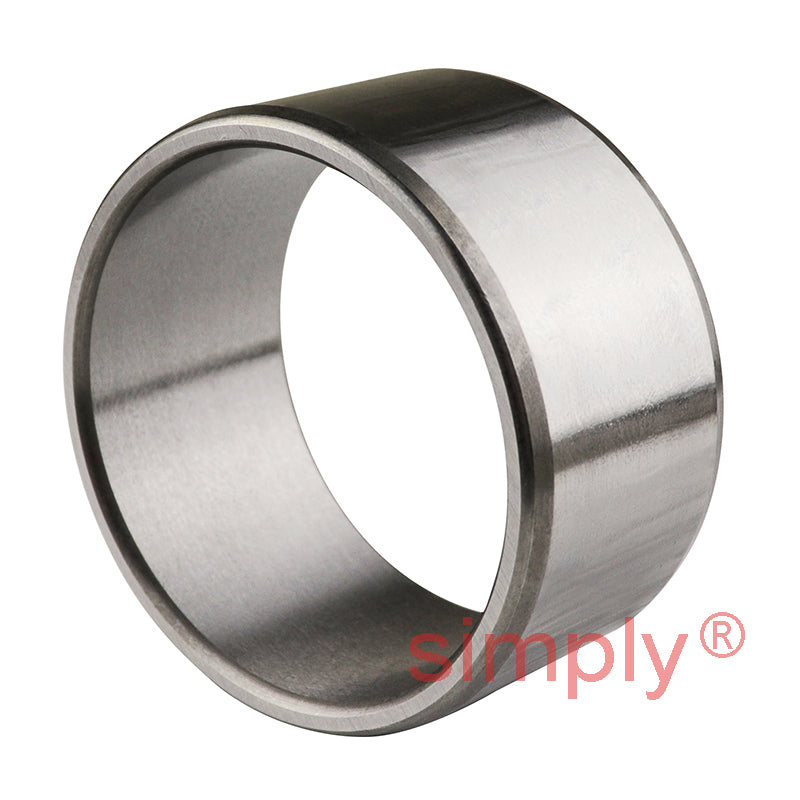

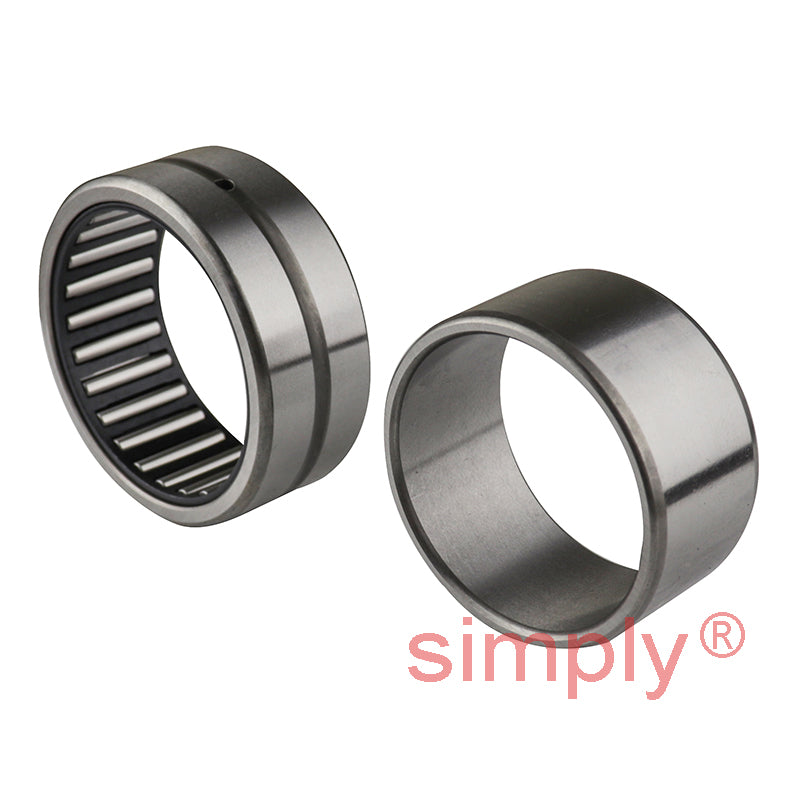

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.

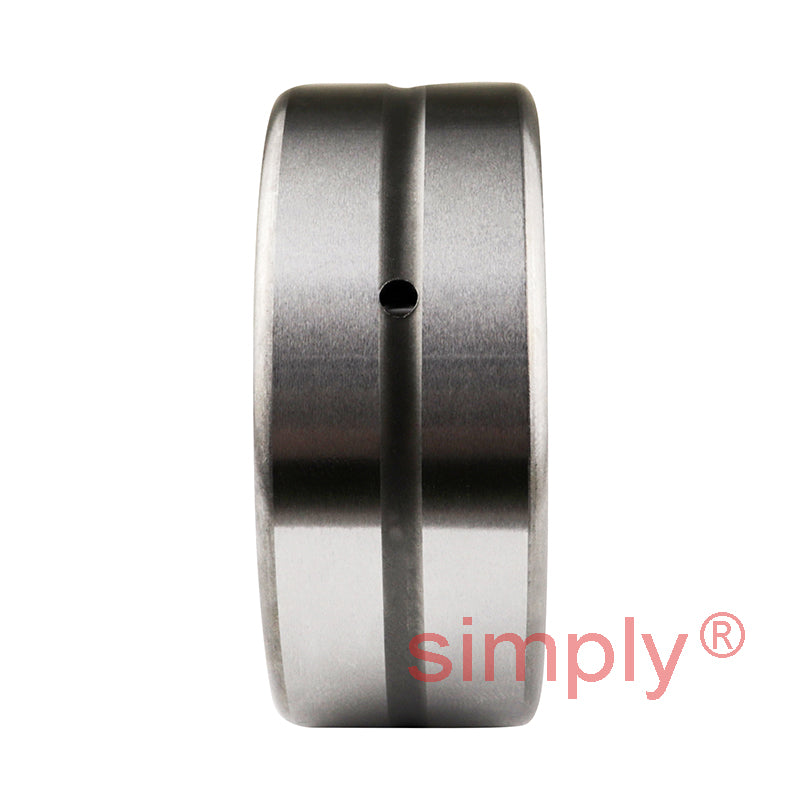

Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 35mm
Outside Diameter:: 50mm
Width:: 20mm

Technical

d	35mm
D	50mm
B	20mm
Dynamic load C	26400 N
Static load Co	51000 N
Fatigue load limit Pu	6400 N
Speed in grease	7000 rpm
Speed in oil	10000 rpm
F	40mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	37mm
Da max	48mm
ra max	0.3mm
