SKU: NKI50/35-MB

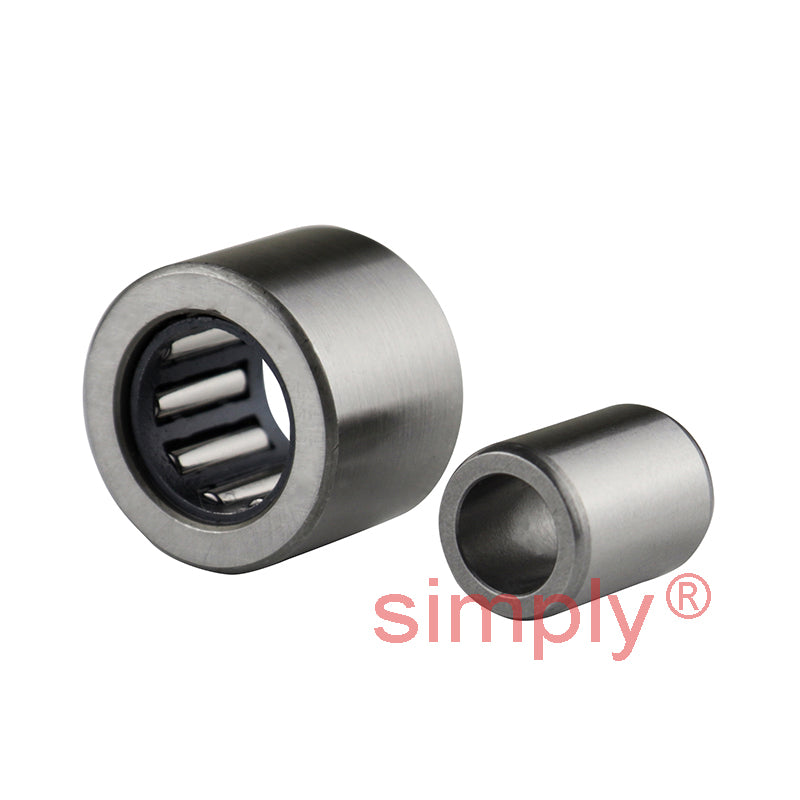

Major Brand NKI50/35 Needle Roller Bearing With Shaft Sleeve 50x68x35mm
Major Brand NKI50/35 Needle Roller Bearing With Shaft Sleeve 50x68x35mm
Regular price
€47,97
ex VAT
Regular price
Sale price
€47,97
ex VAT
In stock
Price Break
10+
€36,53
19+
€34,48
29+
€34,07
39+
€33,66
49+
€33,25
74+
€32,84
99+
€30,79
199+
€30,38
249+
€29,97
499+
€29,56
999+
€28,74
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 68mm
- Width:
- 35mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 68mm |
| B | 35mm |
| Dynamic load | 52300 N |
| Static load | 122000 N |
| Fatigue load limit Pu | 16000 N |
| Speed in grease | 5300 rpm |
| Speed in oil | 7500 rpm |
| F | 55mm |
| r1r2 | 0.6mm |
| S (axial disp) | 2mm |
| da min | 54mm |
| Da max | 64mm |
| ra max | 0.6mm |
