SKU: NKI60/25-MB

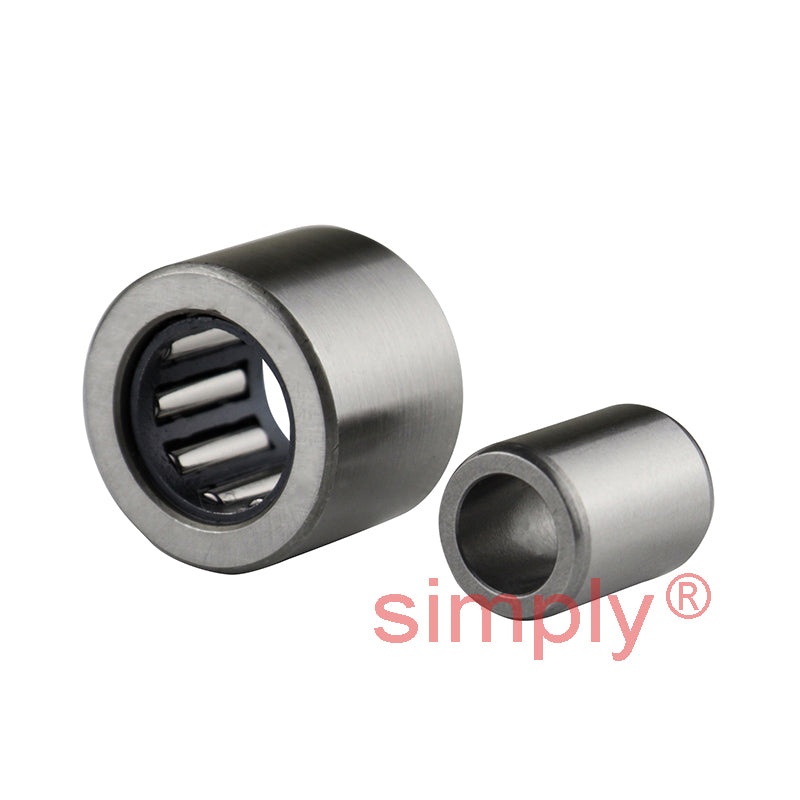

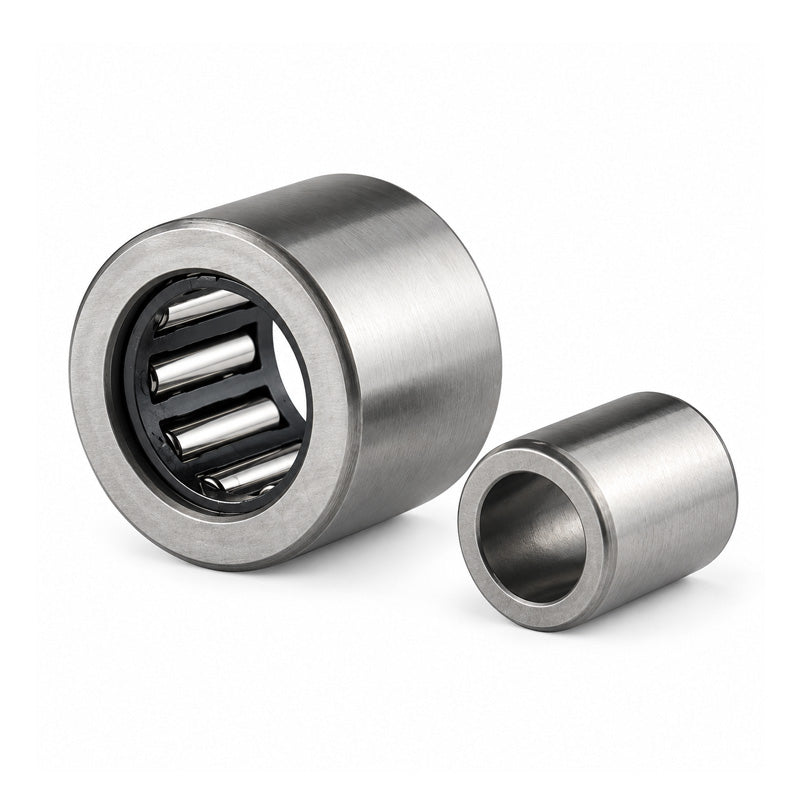

Major Brand NKI60/25 Needle Roller Bearing With Shaft Sleeve 60x82x25mm
Major Brand NKI60/25 Needle Roller Bearing With Shaft Sleeve 60x82x25mm
Regular price
€40,33
ex VAT
Regular price
Sale price
€40,33
ex VAT
In stock
Price Break
10+
€30,71
19+
€28,99
29+
€28,64
39+
€28,30
49+
€27,95
74+
€27,61
99+
€25,88
199+
€25,54
249+
€25,19
499+
€24,85
999+
€24,16
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 82mm
- Width:
- 25mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 82mm |
| B | 25mm |
| Dynamic load | 44000 N |
| Static load | 95000 N |
| Fatigue load limit Pu | 12000 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 64mm |
| Da max | 78mm |
| ra max | 0.6mm |
