SKU: NKI85/36-EU

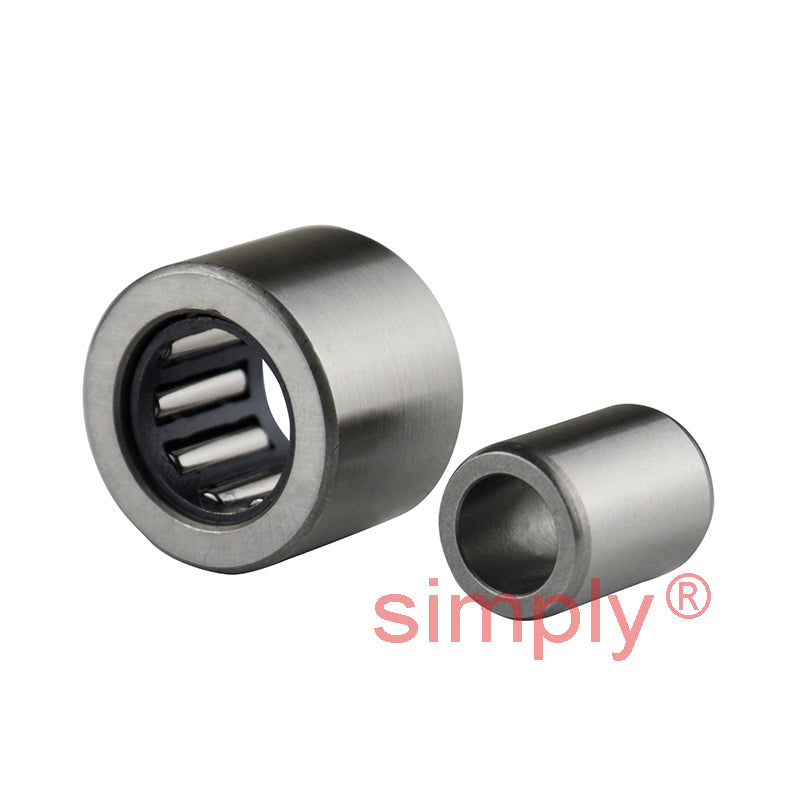

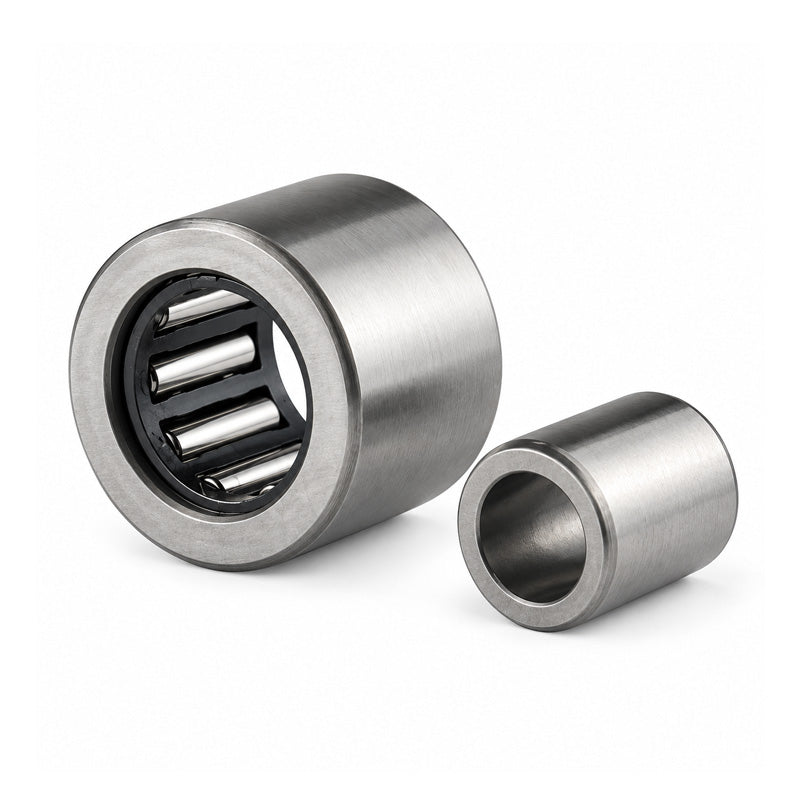

NKI85/36 Budget Needle Roller Bearing / Shaft Sleeve 85x115x36mm
NKI85/36 Budget Needle Roller Bearing / Shaft Sleeve 85x115x36mm
Regular price
€149,18
ex VAT
Regular price
Sale price
€149,18
ex VAT
In stock
Price Break
10+
€132,77
19+
€125,31
29+
€123,82
39+
€122,33
49+
€120,84
74+
€119,34
99+
€111,89
199+
€110,39
249+
€108,90
499+
€107,41
999+
€104,43
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 115mm
- Width:
- 36mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 115mm |
| B | 36mm |
| Dynamic load C | 105000 N |
| Static load Co | 232000 N |
| Fatigue load limit Pu | 30500 N |
| Speed in grease | 3000 rpm |
| Speed in oil | 4300 rpm |
| F | 95mm |
| r1r2 | 1mm |
| S (axial disp) | 1.5mm |
| da min | 90mm |
| Da max | 110mm |
| ra max | 1mm |
