SKU: NKI95/36-EU

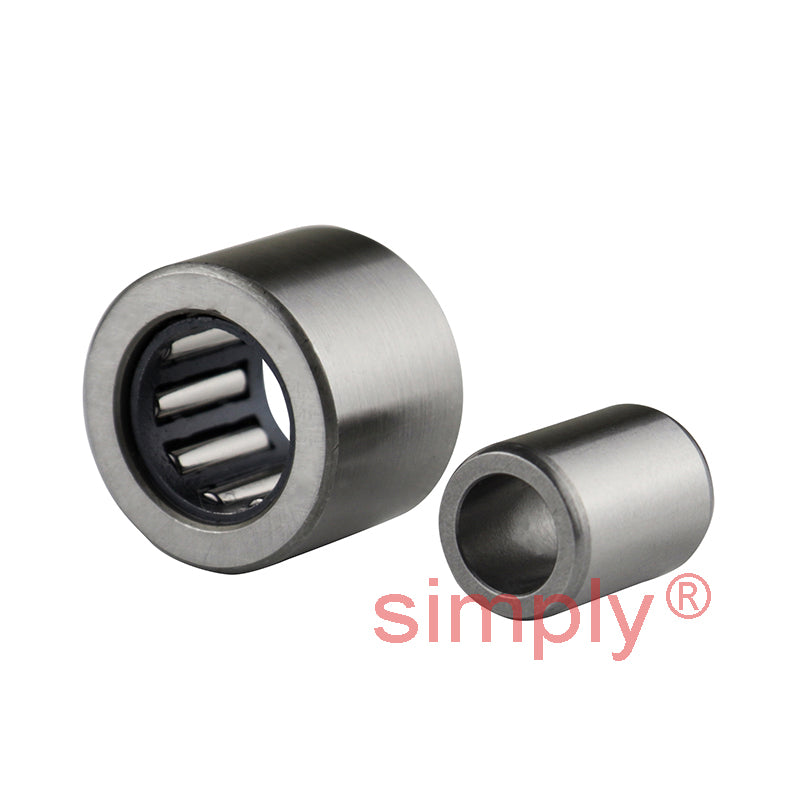

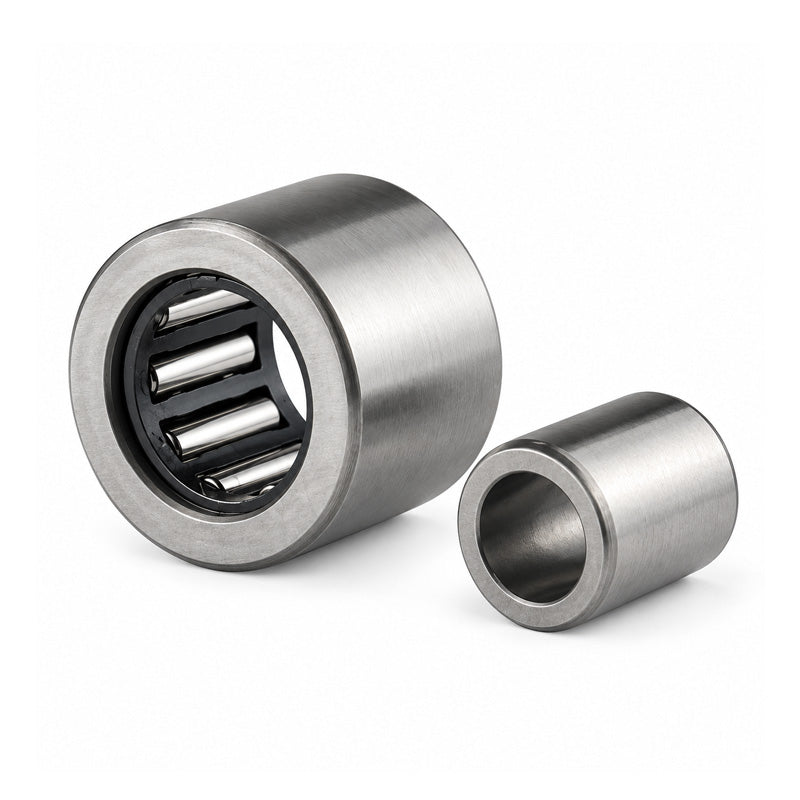

NKI95/36 Budget Needle Roller Bearing / Shaft Sleeve 95x125x36mm

Name: NKI95/36 Budget Needle Roller Bearing / Shaft Sleeve 95x125x36mm
Brand: Gen
SKU: NKI95/36-EU
Price: 200.40 EUR
Availability: InStock

€200,40 ex VAT

Sale Sold out

In stock

Price Break

10+ €152,62

19+ €144,05

29+ €142,34

39+ €140,62

49+ €138,91

74+ €137,19

99+ €128,62

199+ €126,90

249+ €125,19

499+ €123,47

999+ €120,04

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 95mm
Outside Diameter:: 125mm
Width:: 36mm

Technical

d	95mm
D	125mm
B	36mm
Dynamic load C	112000 N
Static load Co	265000 N
Fatigue load limit Pu	33500 N
Speed in grease	2600 rpm
Speed in oil	3800 rpm
F	105mm
r1r2	1mm
S (axial disp)	1.5mm
da min	100mm
Da max	120mm
ra max	1mm
