SKU: NKIA5901-EU

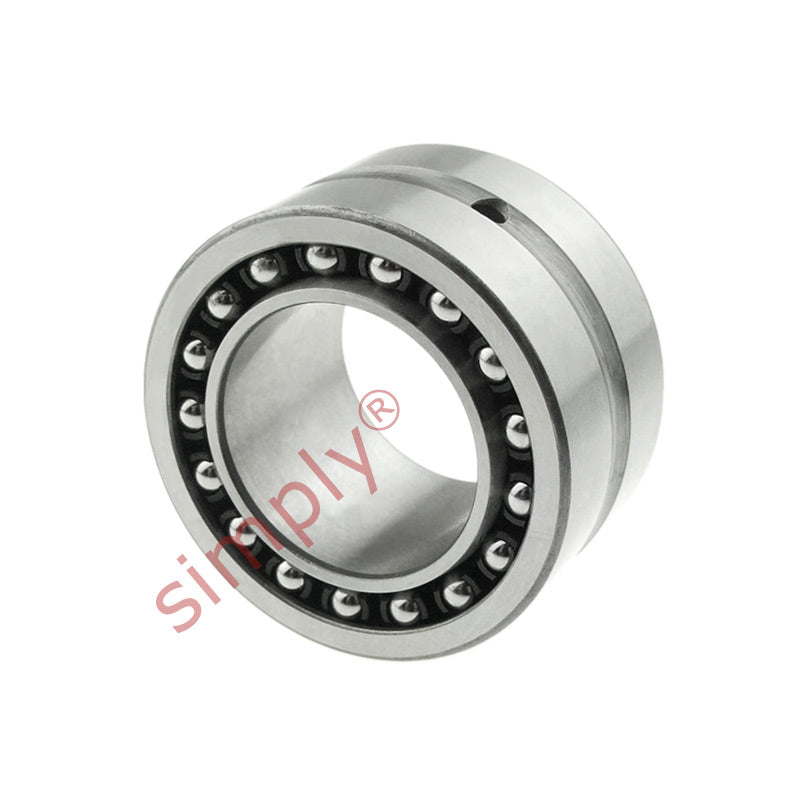

NKIA5901 Budget Needle Roller / Angular Contact Ball Bearing 12x24x16mm
NKIA5901 Budget Needle Roller / Angular Contact Ball Bearing 12x24x16mm
Regular price
€10,83
ex VAT
Regular price
Sale price
€10,83
ex VAT
In stock
Price Break
10+
€8,25
19+
€7,79
29+
€7,69
39+
€7,60
49+
€7,51
74+
€7,42
99+
€6,95
199+
€6,86
249+
€6,77
499+
€6,67
999+
€6,49
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 16mm |
| Radial dynamic load | 8250 N |
| Radial static load | 10000 N |
| Axial dynamic load | 2070 N |
| Axial static load | 1920 N |
| Fatigue load limit radial Pu | 1140 N |
| Fatigue load limit axial Pu | 83 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Weight | 40 g |
