SKU: NKIB5914-EU

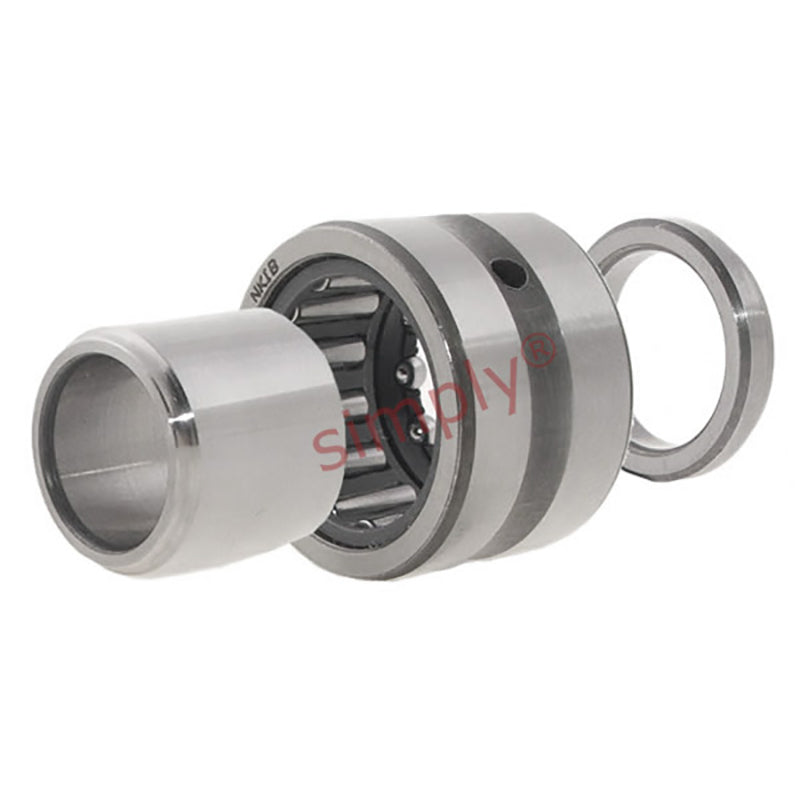

NKIB5914 Budget Needle Roller / Angular Contact Ball Bearing 70x100x45mm
NKIB5914 Budget Needle Roller / Angular Contact Ball Bearing 70x100x45mm
Regular price
€210,88
ex VAT
Regular price
Sale price
€210,88
ex VAT
In stock
Price Break
10+
€160,61
19+
€151,59
29+
€149,78
39+
€147,98
49+
€146,18
74+
€144,37
99+
€135,35
199+
€133,54
249+
€131,74
499+
€129,93
999+
€126,32
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 45mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 100mm |
| B | 45mm |
| C | 40mm |
| Radial dynamic load | 84200 N |
| Radial static load | 163000 N |
| Axial dynamic load | 13200 N |
| Axial static load | 25000 N |
| Fatigue load limit radial Pu | 20800 N |
| Fatigue load limit axial Pu | 1050 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| F | 80mm |
| r1r2 | 1mm |
| da min | 75mm |
| Da max | 95mm |
| ra max | 1mm |
| Weight | 990 g |
