SKU: NKIS20-EU

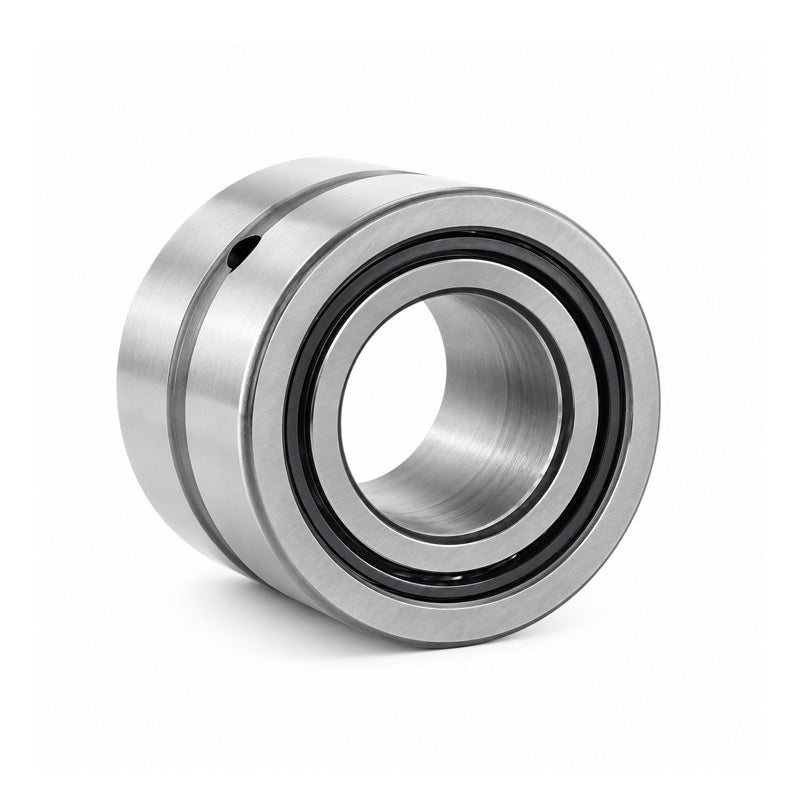

NKIS20 Budget Needle Roller Bearing / Shaft Sleeve 20x42x20mm
NKIS20 Budget Needle Roller Bearing / Shaft Sleeve 20x42x20mm
Regular price
€8,44
ex VAT
Regular price
Sale price
€8,44
ex VAT
In stock
Price Break
10+
€6,43
19+
€6,06
29+
€5,99
39+
€5,92
49+
€5,85
74+
€5,78
99+
€5,42
199+
€5,34
249+
€5,27
499+
€5,20
999+
€5,05
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 20mm |
| Dynamic load C | 28600 N |
| Static load Co | 39000 N |
| Fatigue load limit Pu | 5000 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 28mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.5mm |
| da min | 24mm |
| Da max | 38mm |
| ra max | 0.6mm |
