SKU: NKIS20-MB

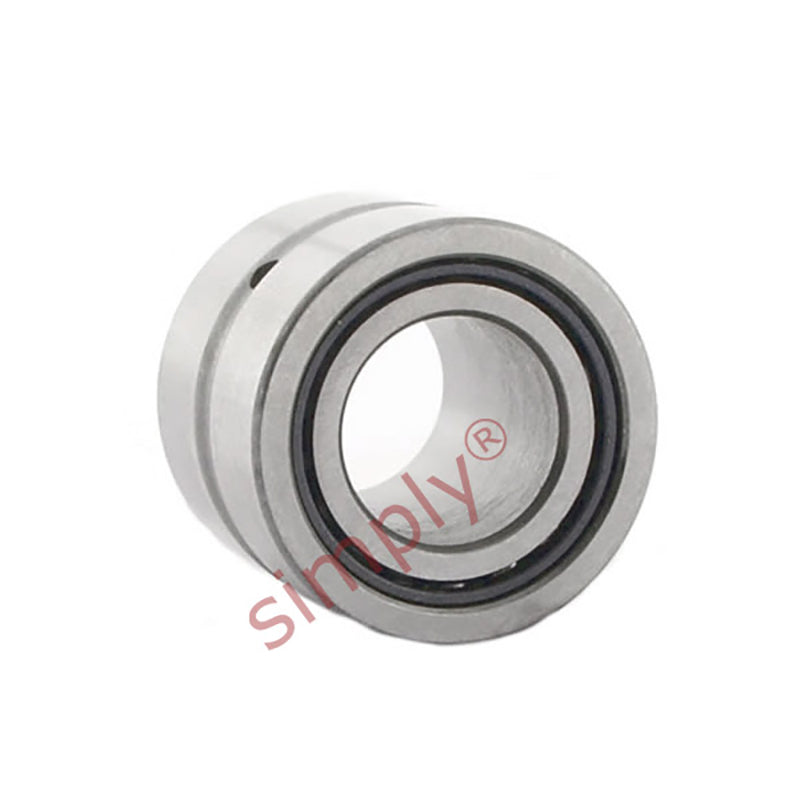

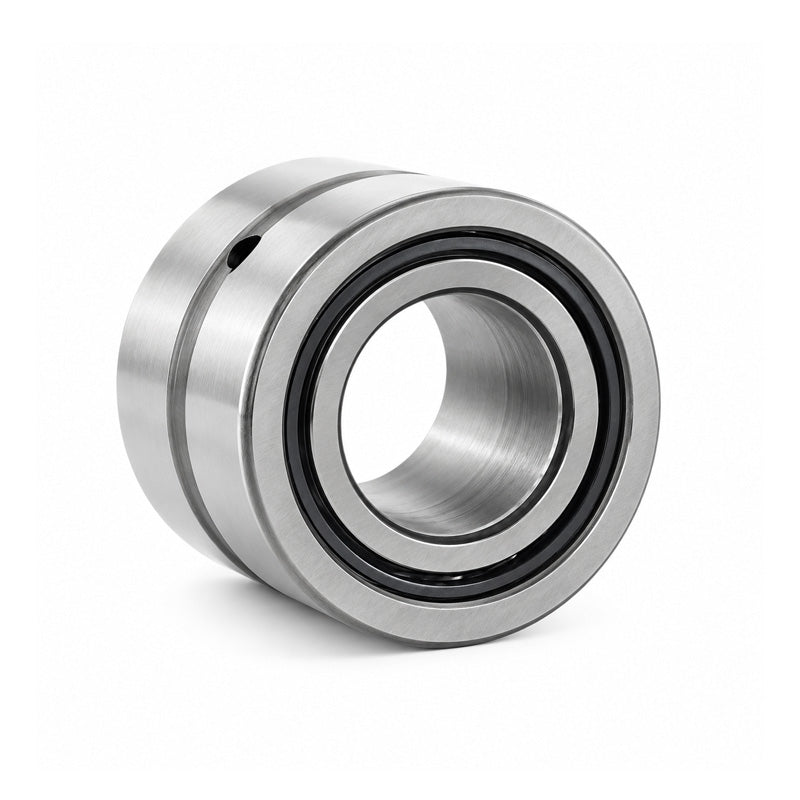

Major Brand NKIS20 Needle Roller Bearing With Shaft Sleeve 20x42x20mm
Major Brand NKIS20 Needle Roller Bearing With Shaft Sleeve 20x42x20mm
Regular price
€29,48
ex VAT
Regular price
Sale price
€29,48
ex VAT
In stock
Price Break
10+
€26,24
19+
€24,76
29+
€24,47
39+
€24,17
49+
€23,88
74+
€23,58
99+
€22,11
199+
€21,82
249+
€21,52
499+
€21,23
999+
€20,64
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 20mm |
| Dynamic load | 28600 N |
| Static load | 39000 N |
| Fatigue load limit Pu | 5000 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 28mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.5mm |
| da min | 24mm |
| Da max | 38mm |
| ra max | 0.6mm |
