SKU: NKIS40-EU

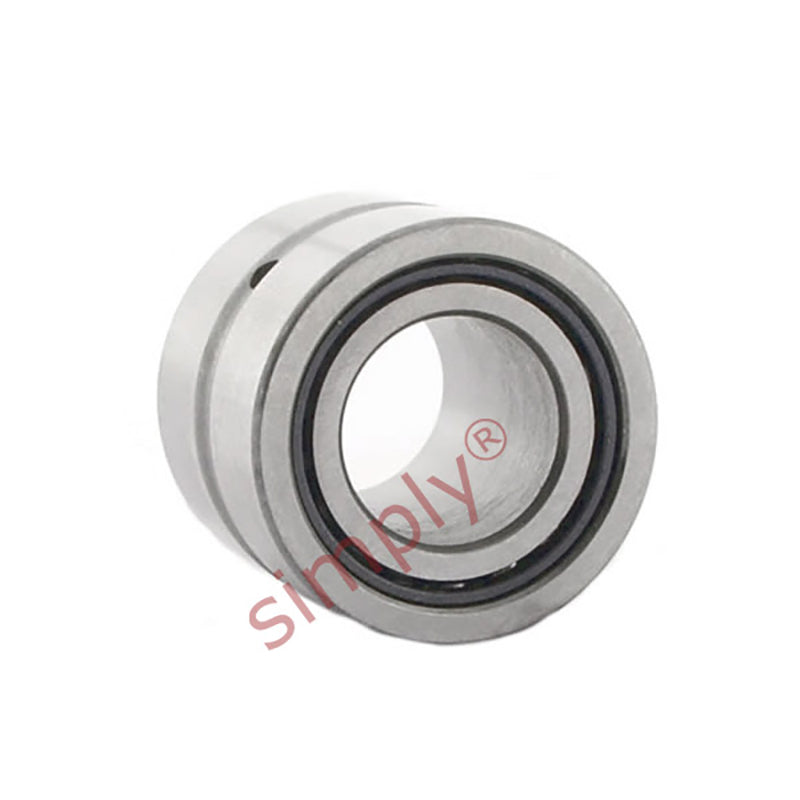

NKIS40 Budget Needle Roller Bearing / Shaft Sleeve 40x65x22mm

Name: NKIS40 Budget Needle Roller Bearing / Shaft Sleeve 40x65x22mm
Brand: Gen
SKU: NKIS40-EU
Price: 25.52 EUR
Availability: InStock

€25,52 ex VAT

Sale Sold out

In stock

Price Break

10+ €19,44

19+ €18,35

29+ €18,13

39+ €17,91

49+ €17,69

74+ €17,47

99+ €16,38

199+ €16,16

249+ €15,94

499+ €15,72

999+ €15,29

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 40mm
Outside Diameter:: 65mm
Width:: 22mm

Technical

d	40mm
D	65mm
B	22mm
Dynamic load C	42900 N
Static load Co	72000 N
Fatigue load limit Pu	9150 N
Speed in grease	5600 rpm
Speed in oil	8000 rpm
F	50mm
r1r2	1mm
S (axial disp)	0.5mm
da min	45mm
Da max	60mm
ra max	1mm
