SKU: NKXR30Z-MB

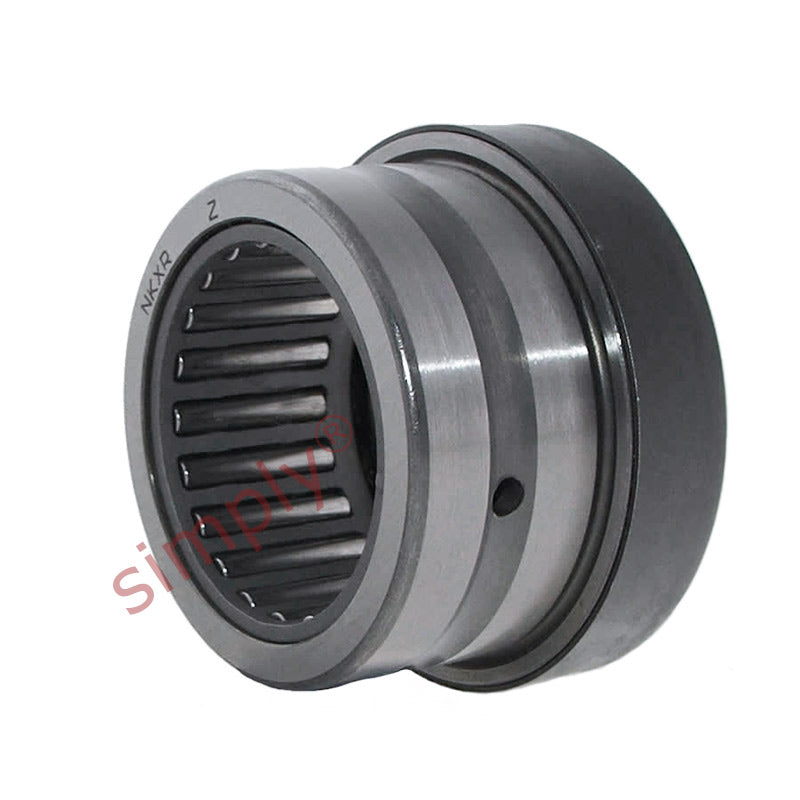

Major Brand NKXR30Z Needle Roller Thrust Bearing without Cover 30x42x30mm
Major Brand NKXR30Z Needle Roller Thrust Bearing without Cover 30x42x30mm
Regular price
€140,07
ex VAT
Regular price
Sale price
€140,07
ex VAT
In stock
Price Break
10+
€106,68
19+
€100,68
29+
€99,49
39+
€98,29
49+
€97,09
74+
€95,89
99+
€89,90
199+
€88,70
249+
€87,50
499+
€86,30
999+
€83,90
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Dynamic load | 22900 N |
| Static load | 39000 N |
| Axial dynamic load | 27000 N |
| Axial static load | 78000 N |
| Fatigue load limit radial Pu | 4800 N |
| Fatigue load limit axial Pu | 7650 N |
| Min load factor A | 0.49 |
| Speed in grease | 2000 rpm |
| Speed in oil | 3000 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 30 |
