SKU: NKXR35-EU

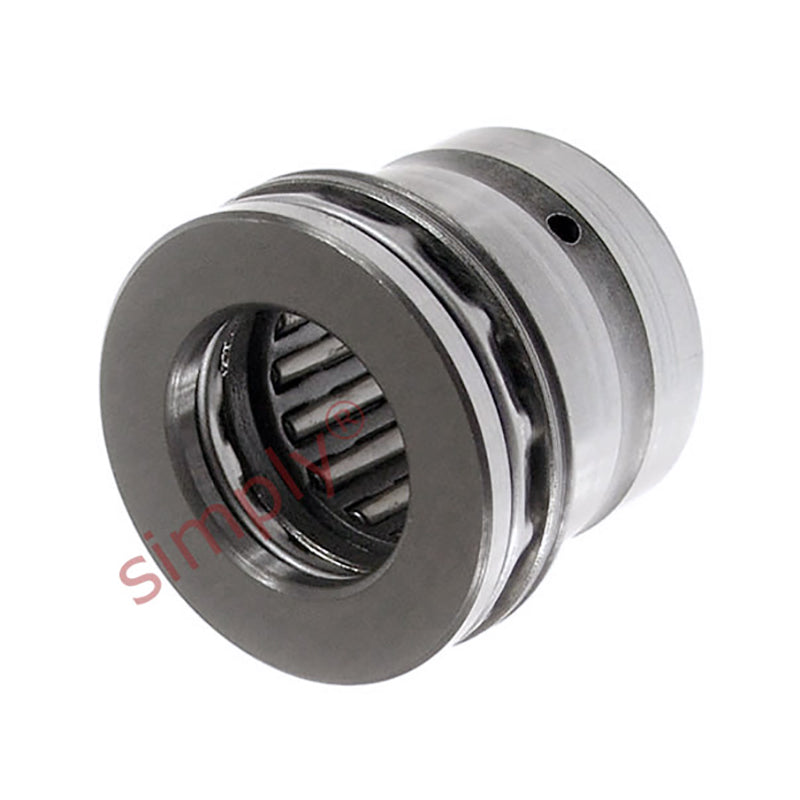

NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm
NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm
Regular price
€39,10
ex VAT
Regular price
Sale price
€39,10
ex VAT
In stock
Price Break
10+
€29,78
19+
€28,11
29+
€27,77
39+
€27,44
49+
€27,10
74+
€26,77
99+
€25,10
199+
€24,76
249+
€24,43
499+
€24,09
999+
€23,42
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Axial dynamic load | 29000 N |
| Axial static load | 93000 N |
| Fatigue load limit radial Pu | 5600 N |
| Fatigue load limit axial Pu | 9150 N |
| Min load factor A | 0.69 |
| Speed in grease | 1900 rpm |
| Speed in oil | 2800 rpm |
| C1 | 12mm |
| C2 | 9mm |
| d | 35mm |
| D1 | 52mm |
| r1r2 min | 0.6mm |
| da | 47.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 30mm |
| F | 35mm |
| B1 | 20mm |
| Inner ring | IR30x35x20 |
| Weight | 160 g |
