SKU: NKXR40Z-EU

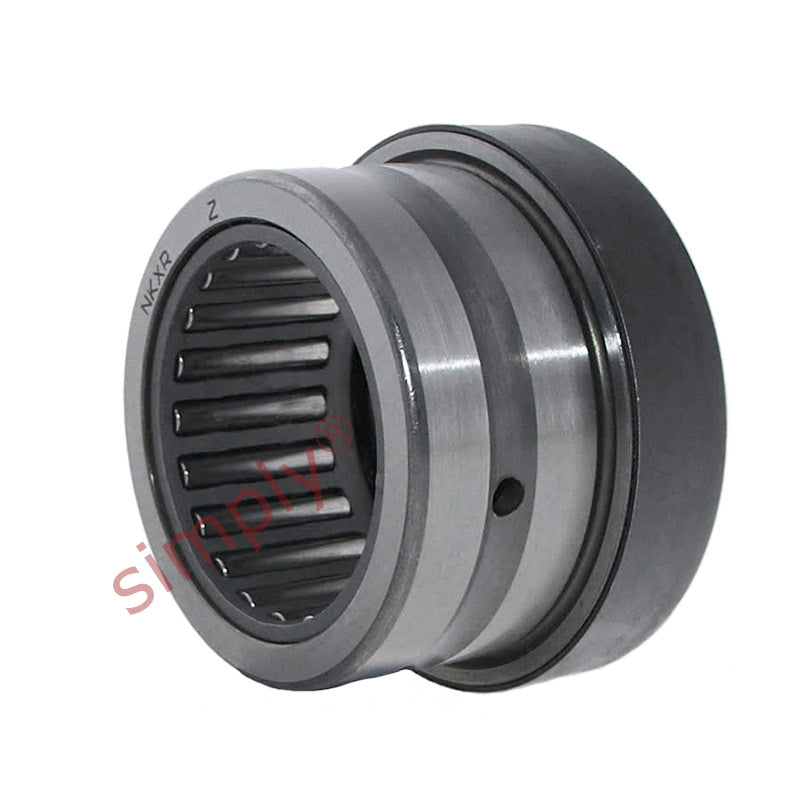

NKXR40Z Budget Needle Roller Thrust Bearing with Cover 40x52x32mm

Name: NKXR40Z Budget Needle Roller Thrust Bearing with Cover 40x52x32mm
Brand: Gen
SKU: NKXR40Z-EU
Price: 44.78 EUR
Availability: InStock

€44,78 ex VAT

Sale Sold out

In stock

Price Break

10+ €34,10

19+ €32,19

29+ €31,81

39+ €31,42

49+ €31,04

74+ €30,66

99+ €28,74

199+ €28,36

249+ €27,97

499+ €27,59

999+ €26,82

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 40mm
Outside Diameter:: 52mm
Width:: 32mm
Seals / Shields:: Metal Shields

Technical

Fw	40mm
D	52mm
C	32mm
Dynamic load	26400 N
Static load	51000 N
Axial dynamic load	43000 N
Axial static load	137000 N
Fatigue load limit radial Pu	6300 N
Fatigue load limit axial Pu	13700 N
Min load factor A	1.5
Speed in grease	1700 rpm
Speed in oil	2400 rpm
C1	13mm
C2	10mm
d	40mm
D2	61.2mm
r1r2 min	0.6mm
da	55.7mm
ra max	0.6mm
rb max	0.3mm
di	35mm
F	40mm
B1	20mm
Inner ring	IR35x40x20
Weight	210 g
