SKU: NKXR45Z-EU

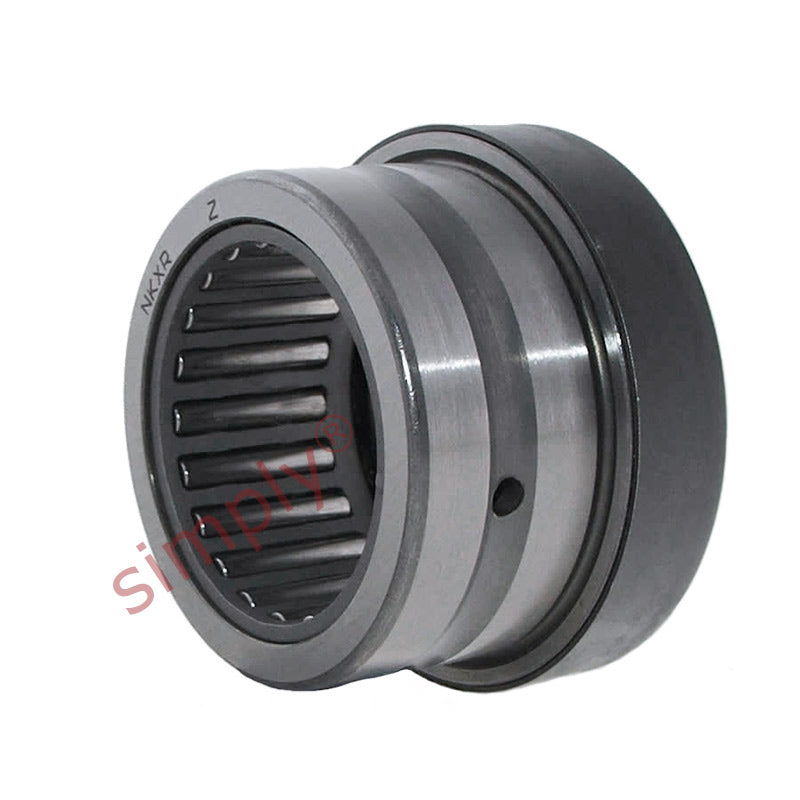

NKXR45Z Budget Needle Roller Thrust Bearing with Cover 45x58x32mm

Name: NKXR45Z Budget Needle Roller Thrust Bearing with Cover 45x58x32mm
Brand: Gen
SKU: NKXR45Z-EU
Price: 44.41 EUR
Availability: InStock

€44,41 ex VAT

Sale Sold out

In stock

Price Break

10+ €33,82

19+ €31,92

29+ €31,54

39+ €31,16

49+ €30,78

74+ €30,40

99+ €28,50

199+ €28,12

249+ €27,74

499+ €27,36

999+ €26,60

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 45mm
Outside Diameter:: 58mm
Width:: 32mm
Seals / Shields:: Metal Shields

Technical

Fw	45mm
D	58mm
C	32mm
Dynamic load	28100 N
Static load	57000 N
Axial dynamic load	45000 N
Axial static load	153000 N
Fatigue load limit radial Pu	7100 N
Fatigue load limit axial Pu	15300 N
Min load factor A	1.9
Speed in grease	1600 rpm
Speed in oil	2200 rpm
C1	14mm
C2	9mm
d	45mm
D2	66.5mm
r1r2 min	0.6mm
da	60.6mm
ra max	0.6mm
rb max	0.3mm
di	40mm
F	45mm
B1	20mm
Inner ring	IR40x45x20
Weight	260 g
