SKU: NTB.1629

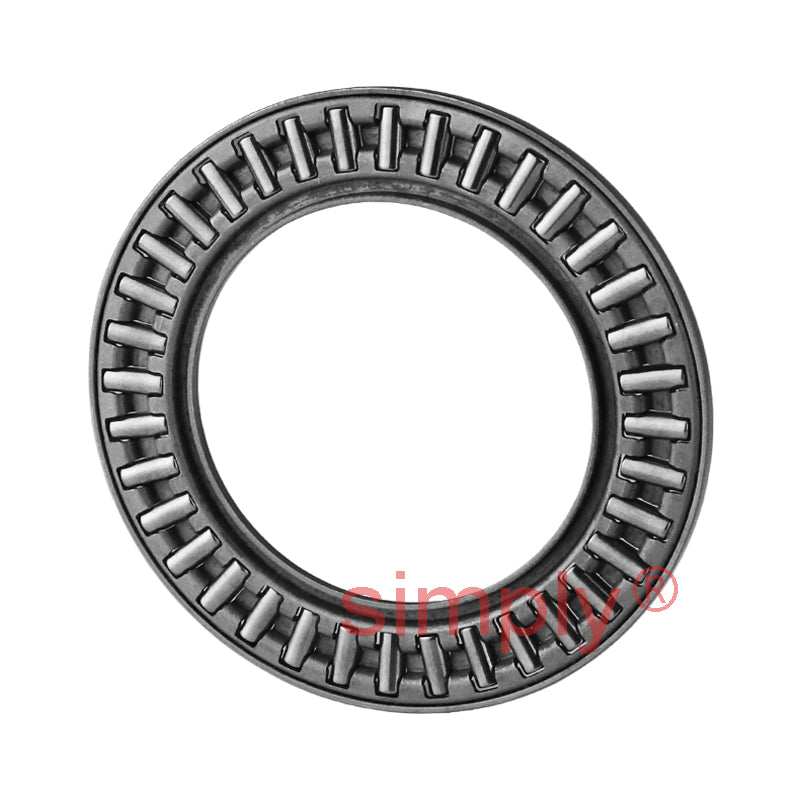

NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
Regular price
€3,81
ex VAT
Regular price
Sale price
€3,81
ex VAT
In stock
Price Break
10+
€3,39
19+
€3,20
29+
€3,16
39+
€3,12
49+
€3,09
74+
€3,05
99+
€2,86
199+
€2,82
249+
€2,78
499+
€2,74
999+
€2,67
Couldn't load pickup availability
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 29mm
- Width:
- 2mm
Technical
Technical
| D | 29mm |
|---|---|
| Dw | 2mm |
| d | 16mm |
| Dynamic Load Cor | 9070 N |
| Static Load Cr | 31400 N |
| Weight | 0.0043 kg |
