SKU: NTB1629-MB

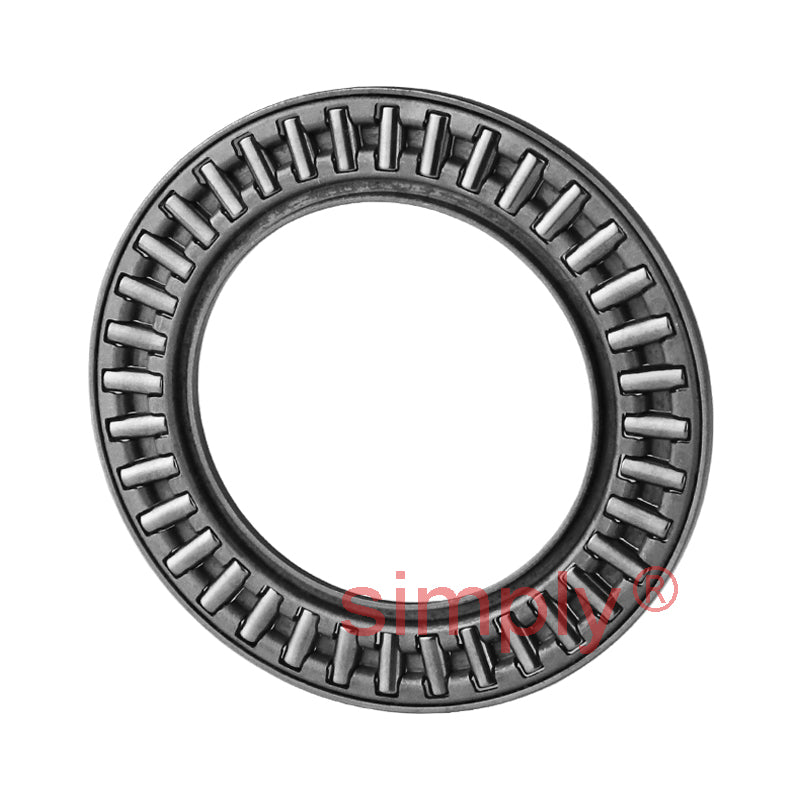

NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
Regular price
€3,83
ex VAT
Regular price
Sale price
€3,83
ex VAT
Equivalent to: AXK1629 FNT1629
In stock
Price Break
10+
€2,92
20+
€2,75
30+
€2,72
40+
€2,69
50+
€2,65
75+
€2,62
100+
€2,46
200+
€2,43
250+
€2,39
500+
€2,36
1000+
€2,29
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
Equivalent: AXK1629 FNT1629
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 29mm
- Width:
- 2mm
Technical
Technical
| D | 29mm |
|---|---|
| Dw | 2mm |
| d | 16mm |
| Dynamic Load Cor | 9070 N |
| Static Load Cr | 31400 N |
| Weight | 0.0043 kg |
