SKU: NU1021ML-SKF

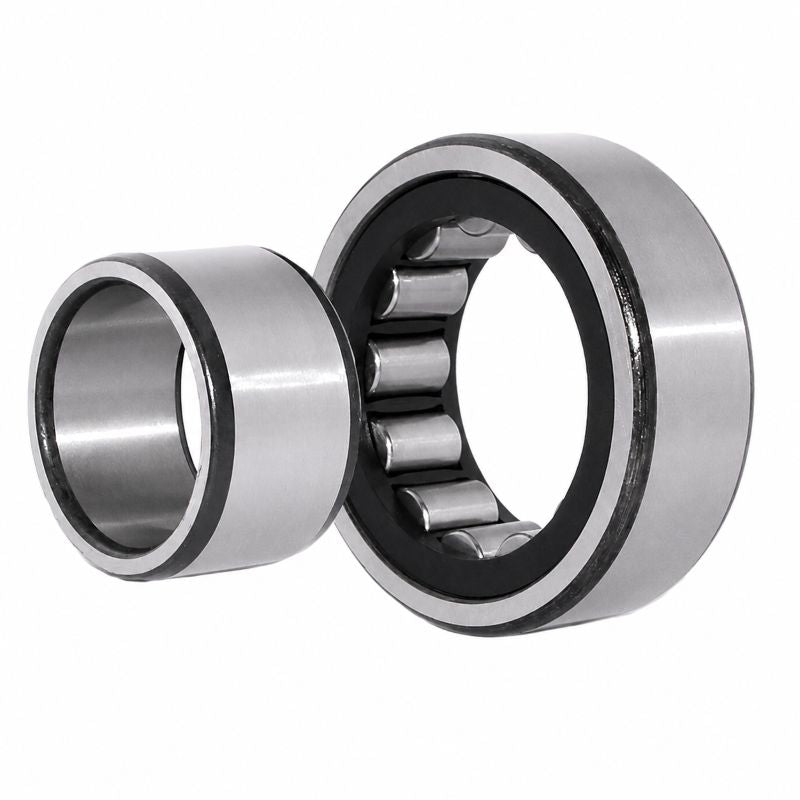

SKF NU1021ML Single Row Cylindrical Roller Bearing with Brass Cage 105x160x26mm
SKF NU1021ML Single Row Cylindrical Roller Bearing with Brass Cage 105x160x26mm
Regular price
€588,14
ex VAT
Regular price
Sale price
€588,14
ex VAT
In stock
Price Break
10+
€447,92
19+
€422,76
29+
€417,73
39+
€412,69
49+
€407,66
74+
€402,63
99+
€377,46
199+
€372,43
249+
€367,40
499+
€362,37
999+
€352,30
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 160mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 160mm |
| B | 26mm |
| Dynamic load C | 101 kN |
| Static load Co | 137 kN |
| Fatigue load limit Pu | 16 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 7500 rpm |
| Weight | 1.9 kg |
| Alt cage | M |
| D1 | 140mm |
| F,E | 119.5mm |
| r1r2 min | 2mm |
| r3r4 min | 1.1mm |
| S | 3.8mm |
| da min | 111mm |
| da max | 117mm |
| db | 122mm |
| Da max | 151mm |
| ra max | 2mm |
| rb max | 1mm |
| kr | 0.1 |
