SKU: NU1026ML/C3-SKF

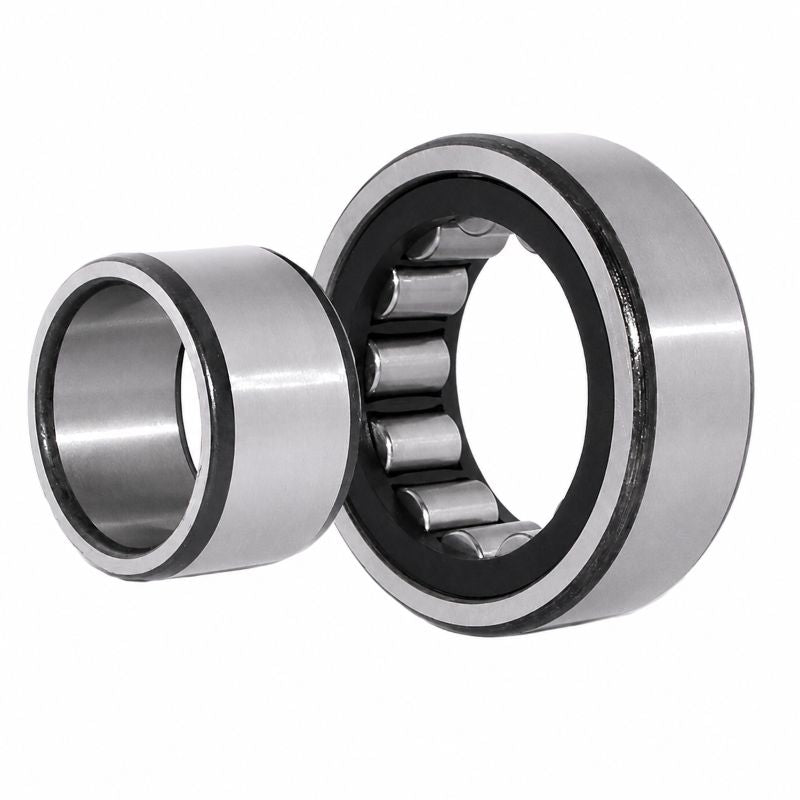

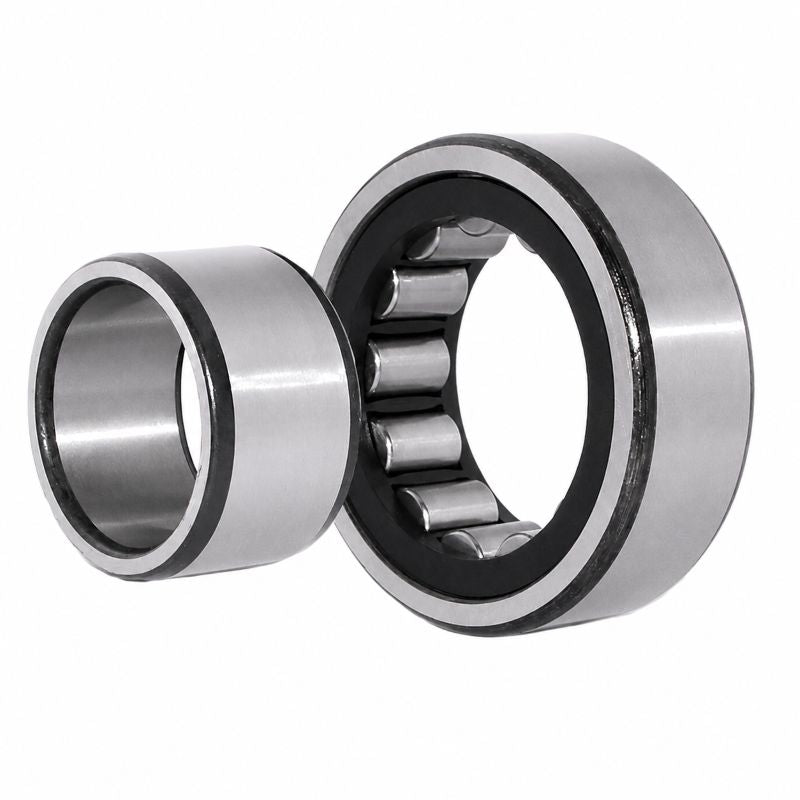

SKF NU1026MLC3 Single Row Cylindrical Roller Bearing with Brass Cage 130x200x33mm
SKF NU1026MLC3 Single Row Cylindrical Roller Bearing with Brass Cage 130x200x33mm
Regular price
€598,89
ex VAT
Regular price
Sale price
€598,89
ex VAT
In stock
Price Break
10+
€456,12
19+
€430,50
29+
€425,37
39+
€420,25
49+
€415,12
74+
€410,00
99+
€384,37
199+
€379,25
249+
€374,12
499+
€369,00
999+
€358,75
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 200mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 130mm |
|---|---|
| D | 200mm |
| B | 33mm |
| Dynamic load C | 165 kN |
| Static load Co | 224 kN |
| Fatigue load limit Pu | 25 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 3.85 kg |
| Alt cage | M |
| D1 | 175mm |
| F,E | 148mm |
| r1r2 min | 2mm |
| r3r4 min | 1.1mm |
| S | 4.7mm |
| da min | 136mm |
| da max | 145mm |
| db | 151mm |
| Da max | 191mm |
| ra max | 2mm |
| rb max | 1mm |
| kr | 0.1 |
