SKU: NU2209ECP/C3-SKF

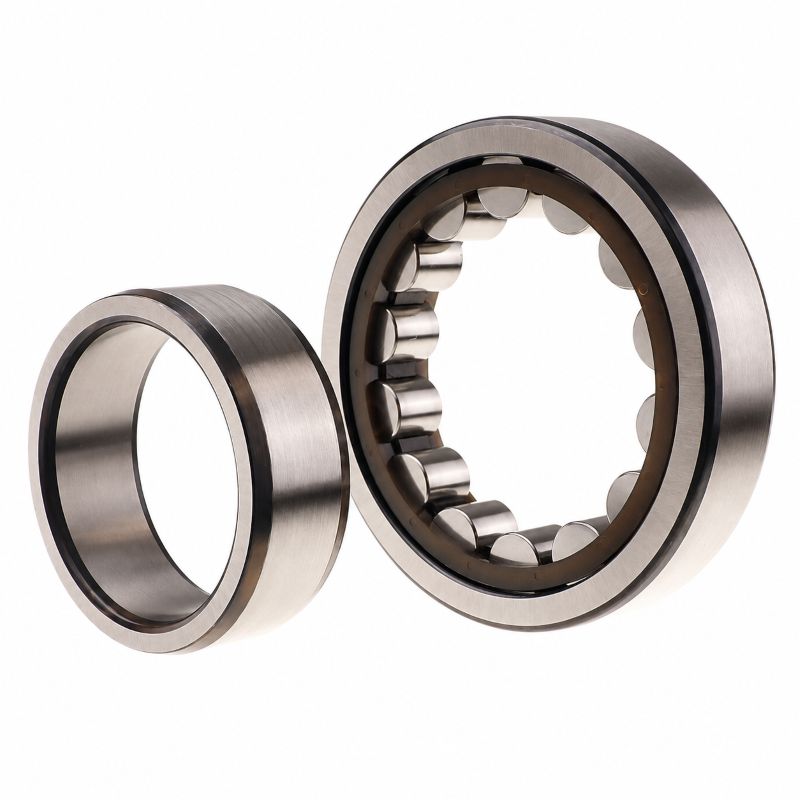

SKF NU2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
SKF NU2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
Regular price
€66,82
ex VAT
Regular price
Sale price
€66,82
ex VAT
In stock
Price Break
10+
€50,89
19+
€48,03
29+
€47,46
39+
€46,89
49+
€46,31
74+
€45,74
99+
€42,88
199+
€42,31
249+
€41,74
499+
€41,17
999+
€40,02
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 85 kN |
| Static load Co | 81.5 kN |
| Fatigue load limit Pu | 10.6 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.52 kg |
| Alt cage | J |
| D1 | 73mm |
| F,E | 54.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.7mm |
| da min | 52mm |
| da max | 53mm |
| db | 56mm |
| Da max | 78mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
