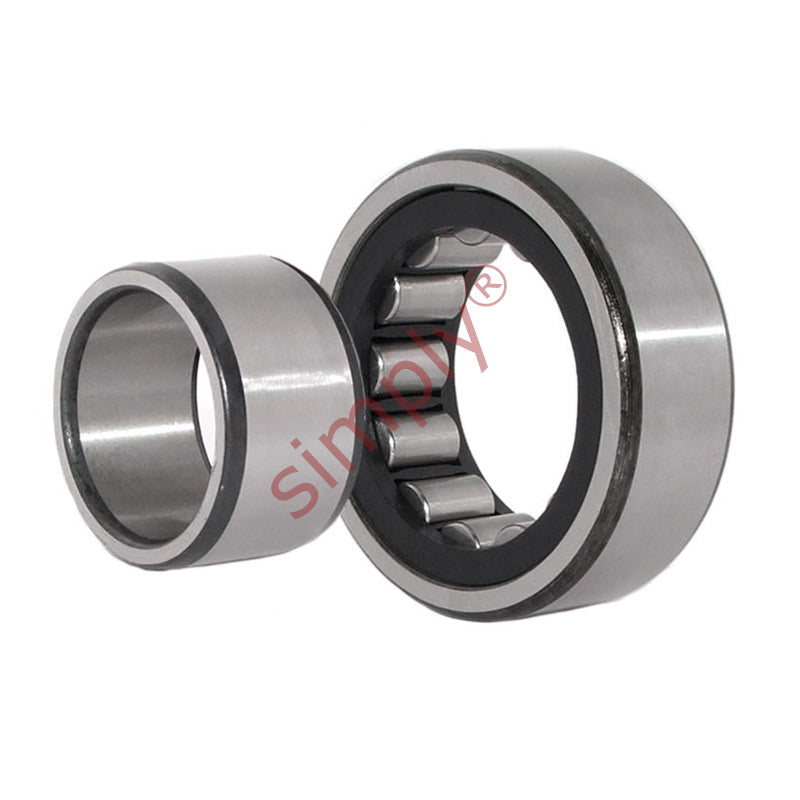

• SKF NU319ECMC3VL0241 Insocoat Cylindrical Roller Bearing 95x200x45mm
1 1

SKU: NU319ECM/C3VL0241-SKF

SKF NU319ECMC3VL0241 Insocoat Cylindrical Roller Bearing 95x200x45mm

SKF NU319ECMC3VL0241 Insocoat Cylindrical Roller Bearing 95x200x45mm
€1.880,67 ex VAT
€1.880,67 ex VAT
Sale Sold out

In stock

Price Break
10+ €1.432,32
19+ €1.351,86
29+ €1.335,76
39+ €1.319,67
49+ €1.303,58
74+ €1.287,48
99+ €1.207,01
199+ €1.190,92
249+ €1.174,83
499+ €1.158,73
999+ €1.126,55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated
Brand / Quality:
SKF - High Quality
Inside Diameter:
95mm
Outside Diameter:
200mm
Width:
45mm
Seals / Shields:
None
Clearance:
C3
Technical
d 95mm
D 200mm
B 45mm
Dynamic load C 390 kN
Static load Co 390 kN
Fatigue load limit Pu 46.5 kN
Reference speed 3600 rpm
Limiting speed 4300 rpm
Weight 7.25 kg
D1 170mm
F 121.5mm
r1r2 min 3mm
r1r4 min 3mm
s 2.9mm
da min 109mm
da max 118mm
db min 124mm
Da min 175mm
Da max 186mm
ra max 2.5mm
rb max 2.5mm
kr 0.15
