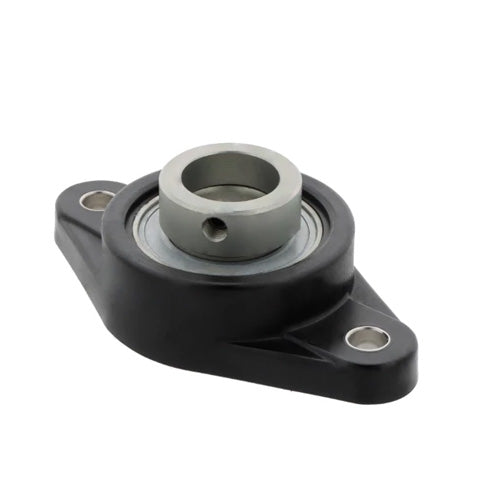

INA PCJT30-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 30mm Bore
INA PCJT30-TV-FA125.5 Two Bolt Plastic Oval Housing with Eccentric Collar Insert 30mm Bore
Regular price
€65,78
ex VAT
Regular price
Sale price
€65,78
ex VAT
In stock
Price Break
4+
€50,10
9+
€47,28
19+
€46,72
29+
€46,16
39+
€45,59
49+
€45,03
59+
€42,22
69+
€41,65
79+
€41,09
89+
€40,53
99+
€39,40
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric collar. This oval plastic housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. The bearing insert has a Corrotect® coating which makes it suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- PCJT
- Bolt Hole Centres:
- 117mm
Technical

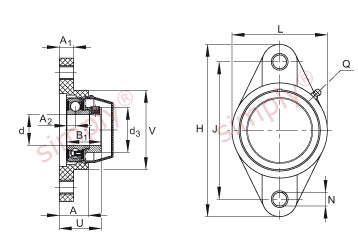

Technical
| d | 30mm |
|---|---|
| H | 148mm |
| U | 45.8mm |
| A | 30.6mm |
| A1 | 13.3mm |
| A2 | 19mm |
| B1 | 35.8mm |
| d3 max | 44mm |
| J | 117mm |
| L | 80mm |
| N | 11mm |
| Q | 1/4 - 28 UNF |
| V | 80mm |
| Mass | 0.49 kg |
| Basic dynamic load rating Cr | 20700 N |
| Basic static load rating Cor | 11300 N |
| Load carrying capacity of housing Cor G | 14200 N |
| Designation of housing | GEH.CJT06-TV |
| Designation of bearing | GRAE30-NPP-B-FA107/125.5 |
| Bearing end cap, closed design (supplied with end cap) | KASK06-S-G |
| Bearing end cap, open design, with integral rotary shaft seal (available by agreement) | KASK06-S-R-NBR |
| Back seal components (to be ordered separately) | RWDR06-R-NBR |
