SKU: PFL203.OVL.PAIR

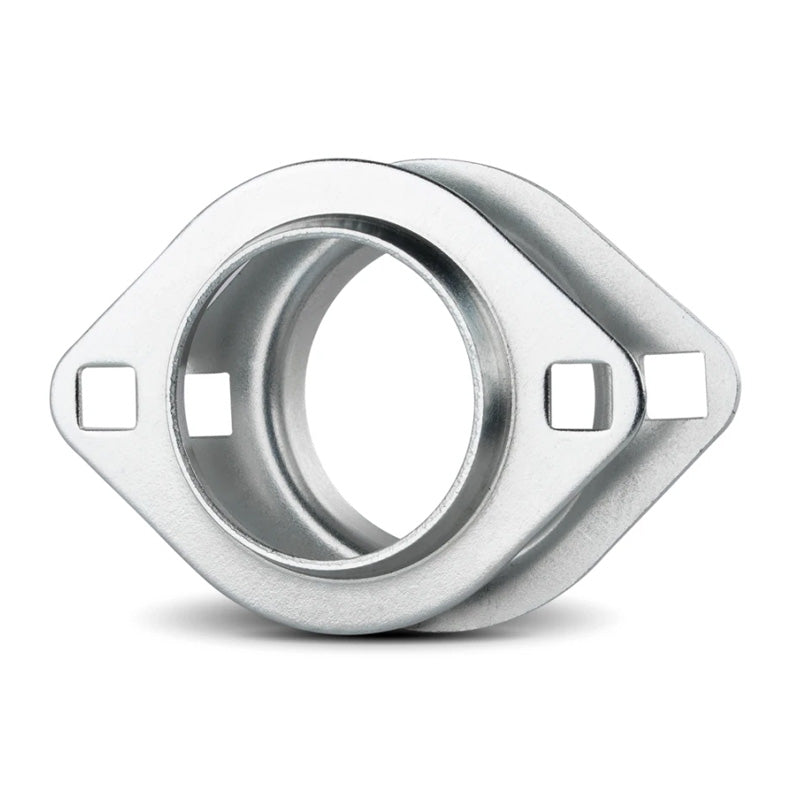

PFL203 1 Set of Oval 2 Bolt Pressed Steel Bearing Housing for SA and SB 201 / 202 / 203 and 172 Inserts
PFL203 1 Set of Oval 2 Bolt Pressed Steel Bearing Housing for SA and SB 201 / 202 / 203 and 172 Inserts
Regular price
€4,11
ex VAT
Regular price
Sale price
€4,11
ex VAT
Equivalent to: PF201 PF202
In stock
Price Break
3+
€3,13
4+
€2,96
9+
€2,92
19+
€2,89
49+
€2,85
99+
€2,82
499+
€2,64
999+
€2,60
1999+
€2,57
2999+
€2,53
4999+
€2,46
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. Insert are NOT supplied with this plate pair. Click here to choose a complete assembly Benefits: Cost effective housing assembly |
Equivalent: PF201 PF202
- Brand / Quality:
- EU Budget - Economy Quality
- Style:
- PFL
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| a | 81mm |
|---|---|
| e | 63.5mm |
| b | 59mm |
| m | 14mm |
| s | 7.1mm |
| t | 4mm |
| f | 45mm |
| Weight | 0.19 kg |
