SKU: PHS18.EU

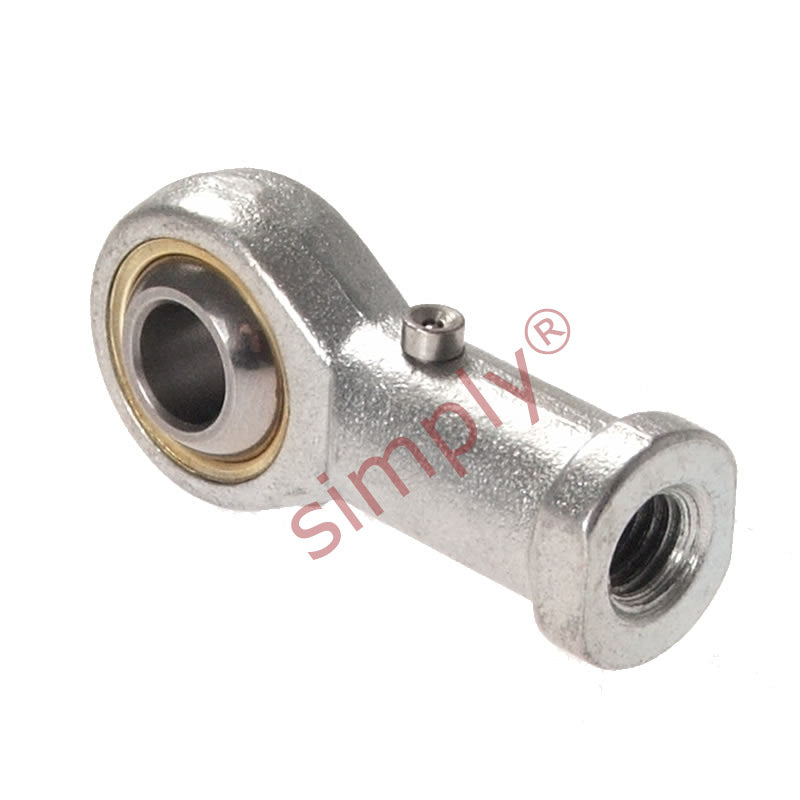

Budget PHS18 Right Hand Steel / Bronze Lined Plain Female Rod End 18mm Bore M18x1.5 Thread

Name: Budget PHS18 Right Hand Steel / Bronze Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Brand: Gen
SKU: PHS18.EU
Price: 10.25 EUR
Availability: InStock

€10,25 ex VAT

Sale Sold out

Equivalent to: GIKFR18PB SIKAC18M SF18 FB-M18

In stock

Price Break

10+ €7,81

19+ €7,37

29+ €7,28

39+ €7,19

49+ €7,10

74+ €7,02

99+ €6,58

199+ €6,49

249+ €6,40

499+ €6,31

999+ €6,14

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: GIKFR18PB SIKAC18M SF18 FB-M18

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M18x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 18mm
Material:: Bronze Lined

Technical

d	18mm
B	23mm
r1	0.6mm
C1	16.5mm
d1 max	21.8mm
d2	42mm
d3	M18x1.5
h1	71mm
L3	36mm
L4	92mm
L5	10mm
d4	25mm
d5	31mm
S	27mm
Ball diameter	1-1/4 inch
Dynamic load Cr	26.2 kN
Static load Cor	30.8 kN
Max angle α	15
Weight	0.295 kg
