SKU: PHS18L.EU

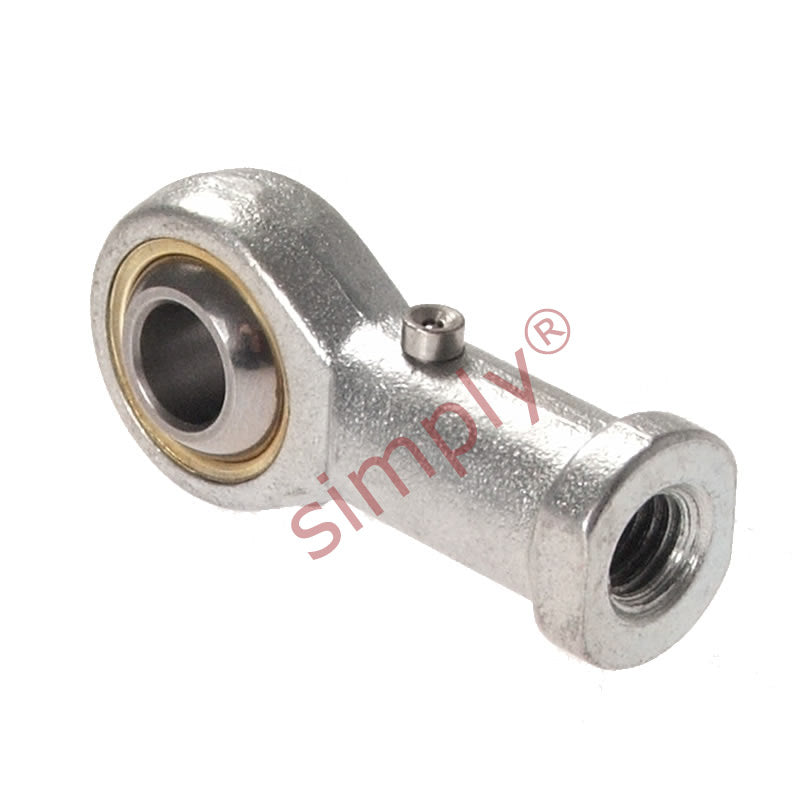

Budget PHS18L Left Hand Steel / Bronze Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Budget PHS18L Left Hand Steel / Bronze Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Regular price
€12,00
ex VAT
Regular price
Sale price
€12,00
ex VAT
Equivalent to: SILKAC18M FBL-M18
In stock
Price Break
10+
€9,14
19+
€8,63
29+
€8,52
39+
€8,42
49+
€8,32
74+
€8,22
99+
€7,70
199+
€7,60
249+
€7,50
499+
€7,39
999+
€7,19
Share this product
Description
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SILKAC18M FBL-M18
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 18mm
- Material:
- Bronze Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x1.5 |
| h1 | 71mm |
| L3 | 36mm |
| L4 | 92mm |
| L5 | 10mm |
| d4 | 25mm |
| d5 | 31mm |
| S | 27mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2 kN |
| Static load Cor | 30.8 kN |
| Max angle α | 15 |
| Weight | 0.295 kg |
