SKU: PHS25.EU

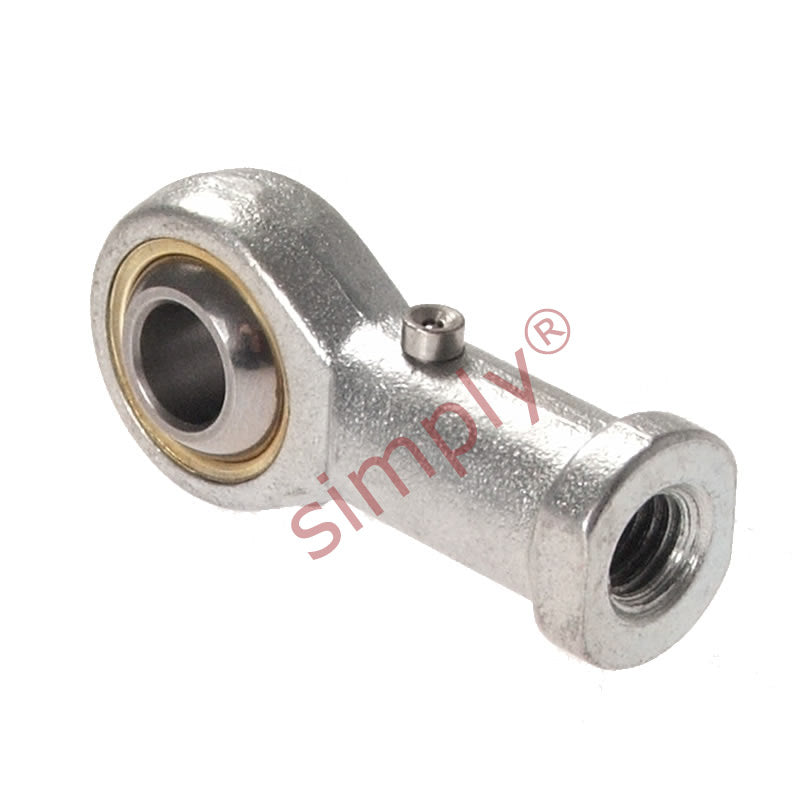

Budget PHS25 Right Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread

Name: Budget PHS25 Right Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread
Brand: Gen
SKU: PHS25.EU
Price: 15.71 EUR
Availability: InStock

€15,71 ex VAT

Sale Sold out

Equivalent to: GIKFR25PB SIKAC25M SF25 FB-M25

In stock

Price Break

10+ €11,96

19+ €11,29

29+ €11,16

39+ €11,02

49+ €10,89

74+ €10,75

99+ €10,08

199+ €9,95

249+ €9,81

499+ €9,68

999+ €9,41

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: GIKFR25PB SIKAC25M SF25 FB-M25

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 25mm
Material:: Bronze Lined

Technical

d	25mm
B	31mm
r1	0.6mm
C1	22mm
d1 max	29.5mm
d2	60mm
d3	M24x2
h1	94mm
L3	48mm
L4	124mm
L5	12mm
d4	33.5mm
d5	42mm
S	36mm
Ball diameter	1-11/16 inch
Dynamic load Cr	47.1 kN
Static load Cor	74.1 kN
Max angle α	15
Weight	0.75 kg
