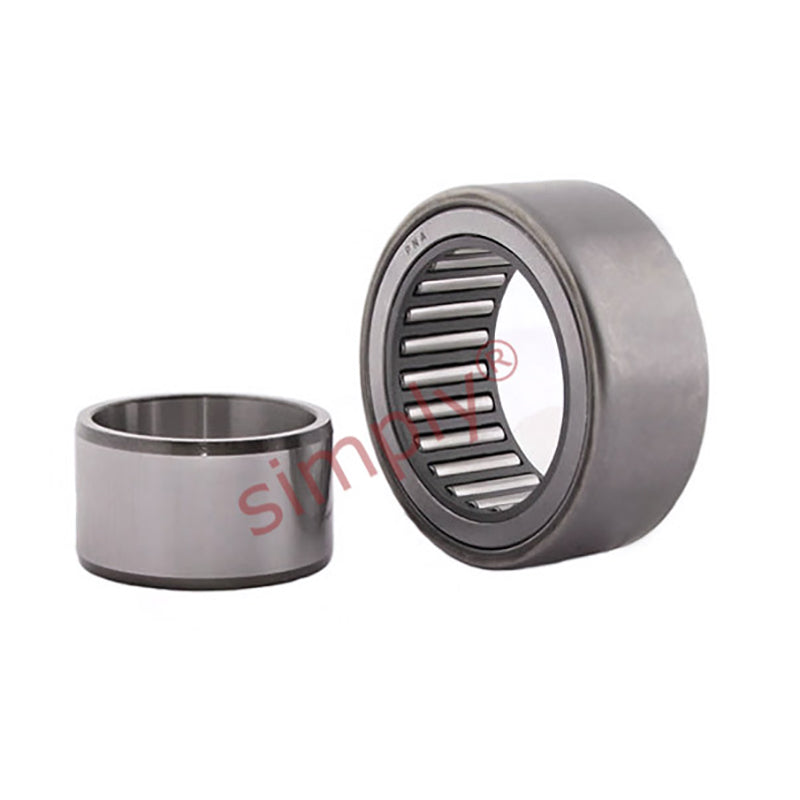

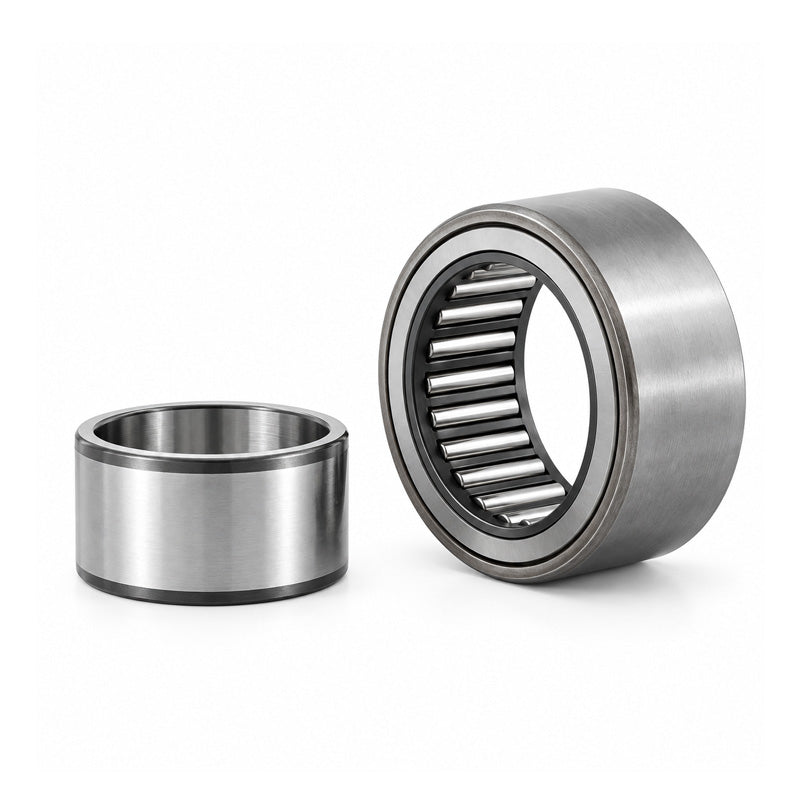

Major Brand PNA35/55 Needle Roller Bearing Alignment Type With Shaft Sleeve 35x55x20
Major Brand PNA35/55 Needle Roller Bearing Alignment Type With Shaft Sleeve 35x55x20
Regular price
€20,56
ex VAT
Regular price
Sale price
€20,56
ex VAT
In stock
Price Break
10+
€15,66
19+
€14,78
29+
€14,60
39+
€14,42
49+
€14,25
74+
€14,07
99+
€13,19
199+
€13,02
249+
€12,84
499+
€12,66
999+
€12,31
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 20mm

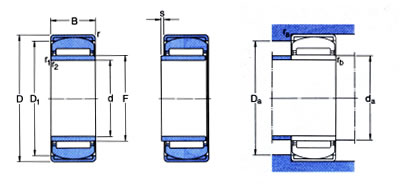

Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 20mm |
| Dynamic load | 26400 N |
| Static load | 51000 N |
| Fatigue load limit Pu | 6300 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| D1 | 50.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 37mm |
| Da min | 49.5 |
