SKU: RA012-NPP-INA

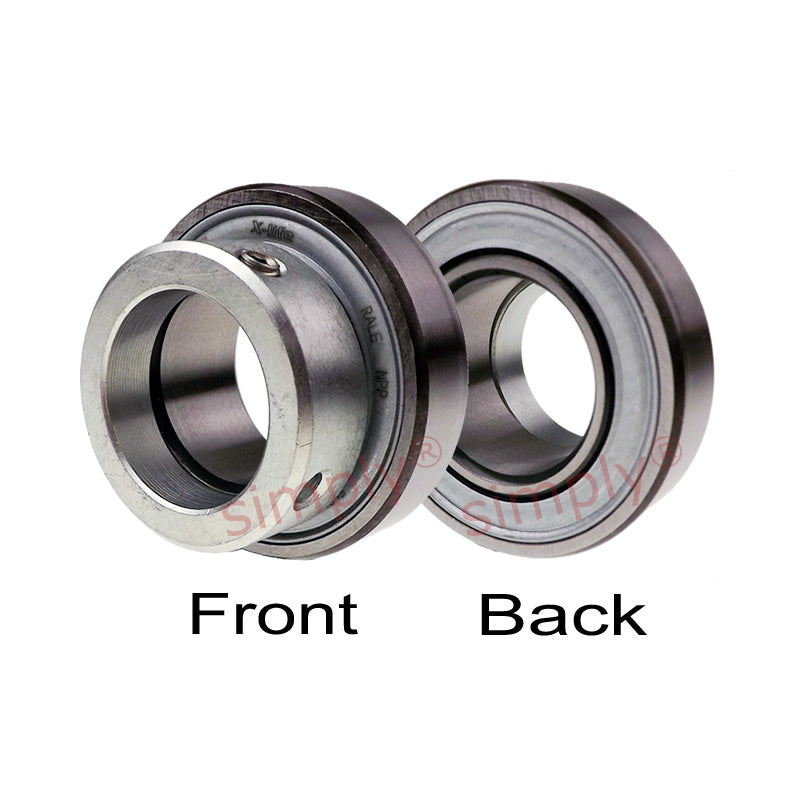

INA RA012NPPFA106 Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 19.05x47x31mm
INA RA012NPPFA106 Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 19.05x47x31mm
Regular price
€24,59
ex VAT
Regular price
Sale price
€24,59
ex VAT
In stock
Price Break
3+
€18,73
5+
€17,67
10+
€17,46
15+
€17,25
20+
€17,04
30+
€16,83
40+
€15,78
50+
€15,57
60+
€15,36
75+
€15,15
100+
€14,73
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Width:
- 31mm
Technical
Technical
| d | 19.05mm |
|---|---|
| d | 3/4 inch |
| D | 47mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 14mm |
| d2 | 26.9mm |
| d3 max | 33mm |
| S | 7.5mm |
| W | 1/8 inch |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.16 kg |
