SKU: RABRB15/47-FA106-INA

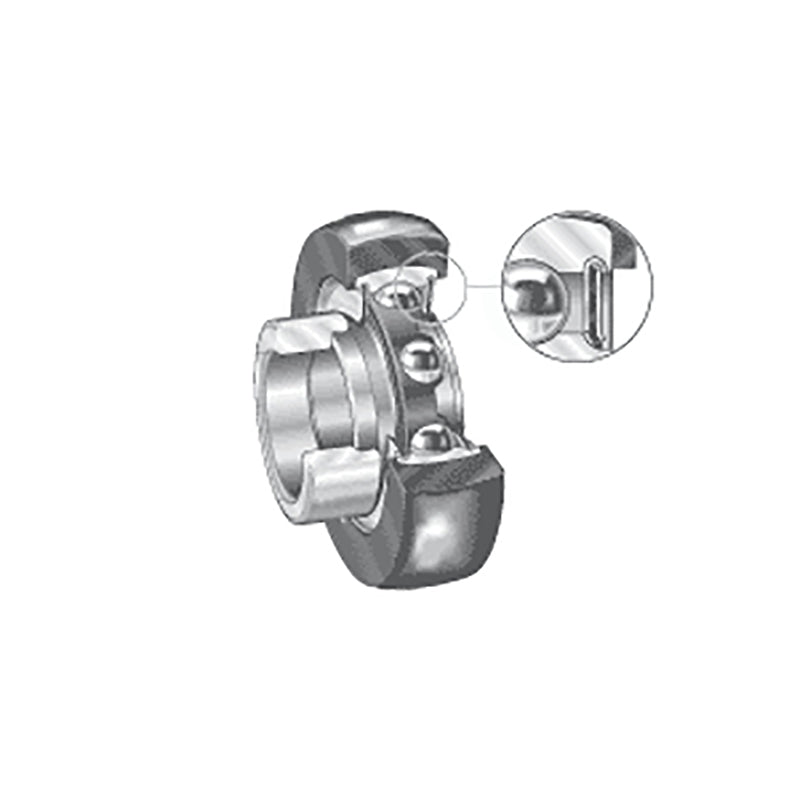

INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
Regular price
€33,00
ex VAT
Regular price
Sale price
€33,00
ex VAT
In stock
Price Break
10+
€29,37
19+
€27,72
29+
€27,39
39+
€27,06
49+
€26,73
74+
€26,40
99+
€24,75
199+
€24,42
249+
€24,09
499+
€23,76
999+
€23,10
Couldn't load pickup availability
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 47.3mm
- Width:
- 31.1mm
- Type:
- Spherical Outer
Technical
Technical
| d | 15mm |
|---|---|
| D | 47.3mm |
| B2 | 31.1mm |
| B1 | 28.6mm |
| C | 18mm |
| D2 | 33.5mm |
| d3 max | 28mm |
| S1 | 22.1mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 840 N |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Designation of rubber interliner | RABR39/46 |
| Designation of bearing | RAE15-NPP-B-FA106 |
| Weight | 0.15 kg |
