SKU: RAE40-NPP-B-INA

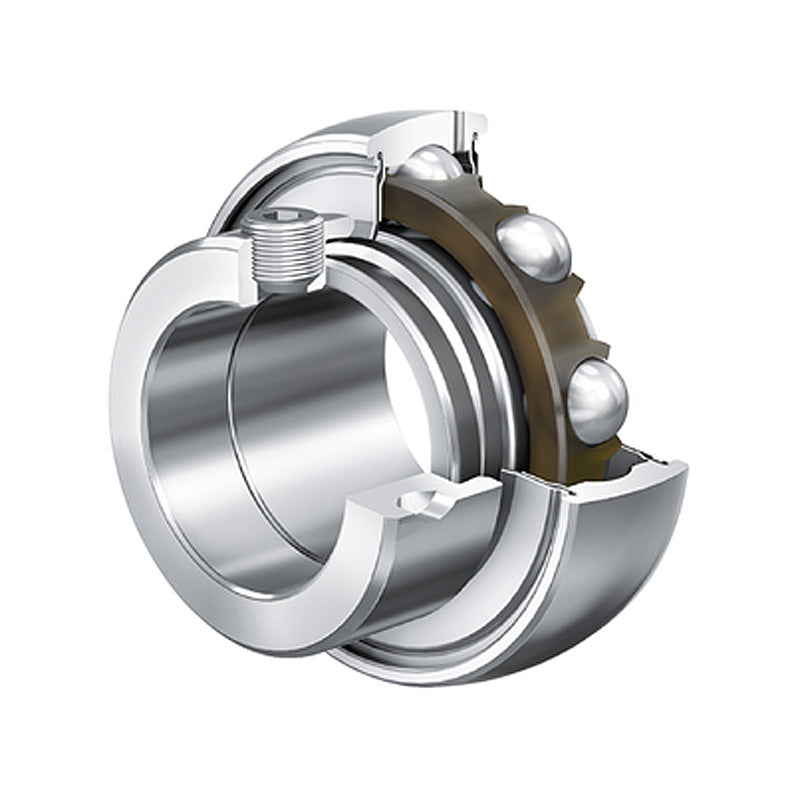

INA RAE40XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 40x80x43.8mm
INA RAE40XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 40x80x43.8mm
Regular price
€45,66
ex VAT
Regular price
Sale price
€45,66
ex VAT
In stock
Price Break
10+
€40,64
19+
€38,35
29+
€37,90
39+
€37,44
49+
€36,98
74+
€36,53
99+
€34,25
199+
€33,79
249+
€33,33
499+
€32,88
999+
€31,96
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 43.8mm
- Type:
- Spherical Outer
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 21mm |
| d2 | 49.4mm |
| d3 max | 58mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.63 kg |
