SKU: RALE20-NPP-FA106-INA

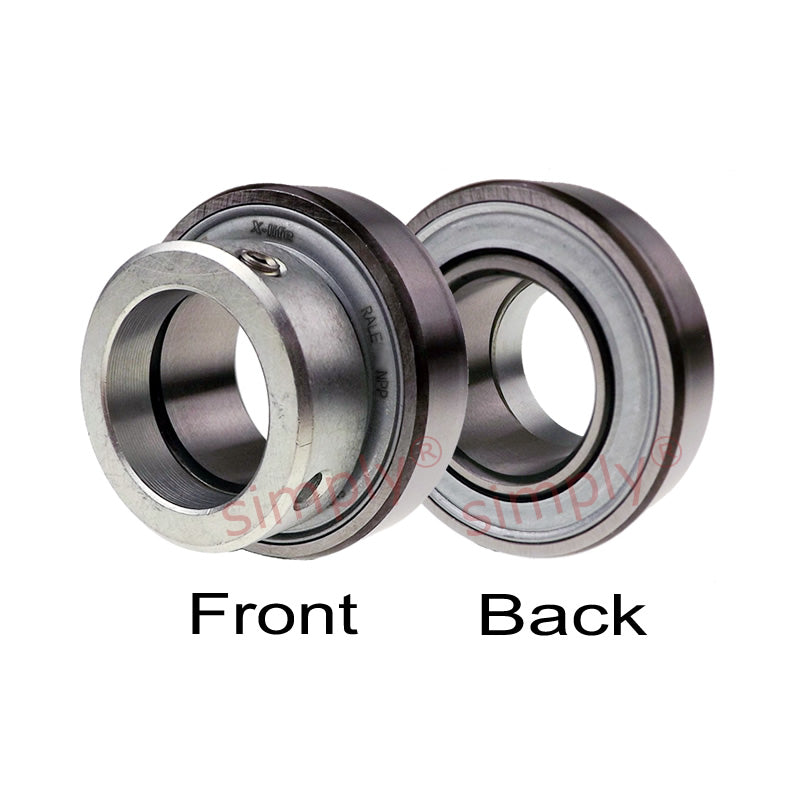

INA RALE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 20x42x24.5mm
INA RALE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 20x42x24.5mm
Regular price
€23,66
ex VAT
Regular price
Sale price
€23,66
ex VAT
In stock
Price Break
10+
€21,06
19+
€19,87
29+
€19,64
39+
€19,40
49+
€19,16
74+
€18,93
99+
€17,75
199+
€17,51
249+
€17,27
499+
€17,04
999+
€16,56
Couldn't load pickup availability
Description
Description
| INA RALE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 24.5mm
- Type:
- Parallel Outer
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B1 | 24.5mm |
| B | 16.7mm |
| C | 12mm |
| d2 | 25.4mm |
| d3 max | 30mm |
| S | 6mm |
| W | 2.5mm |
| Dynamic load Cr | 9400 N |
| Static load C0r | 5000 N |
| Weight | 0.1 kg |
