SKU: RAXN530-NADELLA

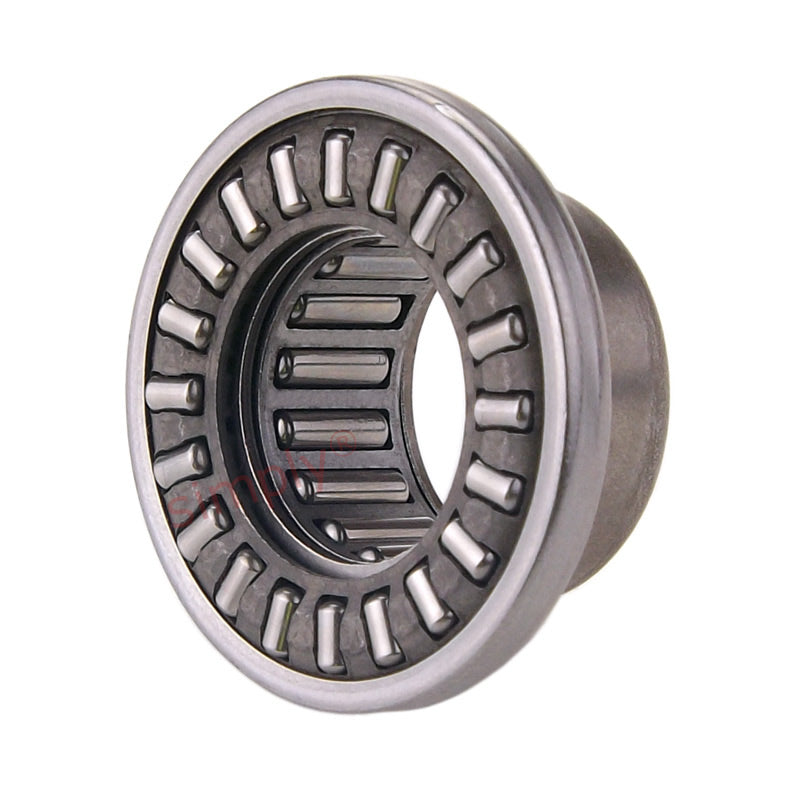

Nadella RAXN 530 Needle Combined Bearing with Needle Thrust Cage 30x42x26mm Allow 2-3 Days
Nadella RAXN 530 Needle Combined Bearing with Needle Thrust Cage 30x42x26mm Allow 2-3 Days
Out of stock
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 26mm
- Width:
- 42mm
Technical
Technical
| Fw | 30mm |
|---|---|
| C | 26mm |
| D | 42mm |
| Da | 47mm |
| Eb | 32.7mm |
| Ea | 42.3mm |
| C1 | 8mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 20.2 kN |
| Radial static load | 34.6 kN |
| Axial dynamic load | 26.5 kN |
| Axial static load | 77 kN |
| Speed rating | 6500 rpm |
| Inner ring | JR 25x30x20 kN |
| Weight | 0.118 kg |
