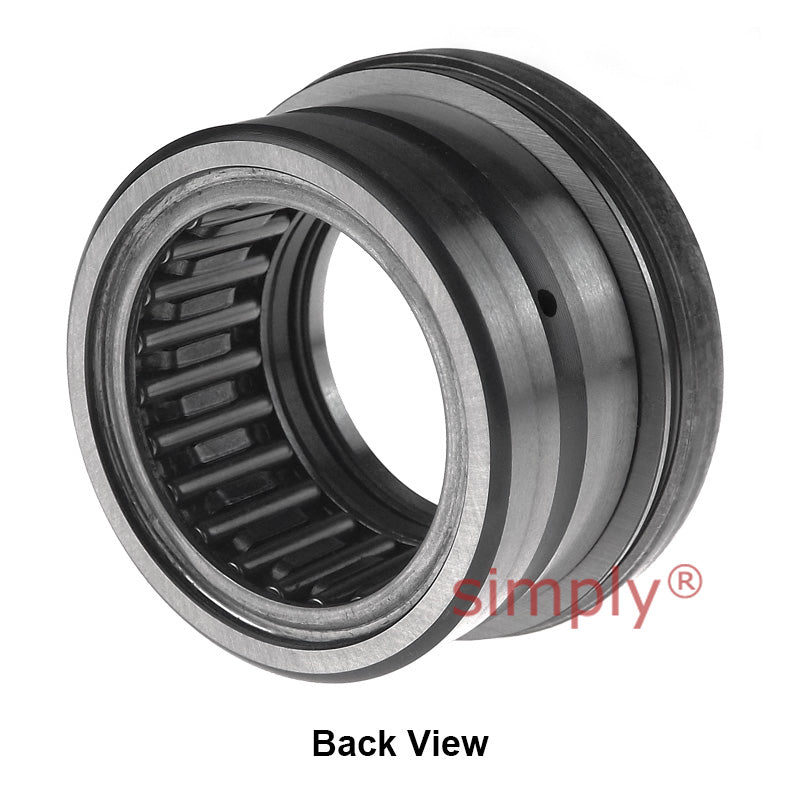

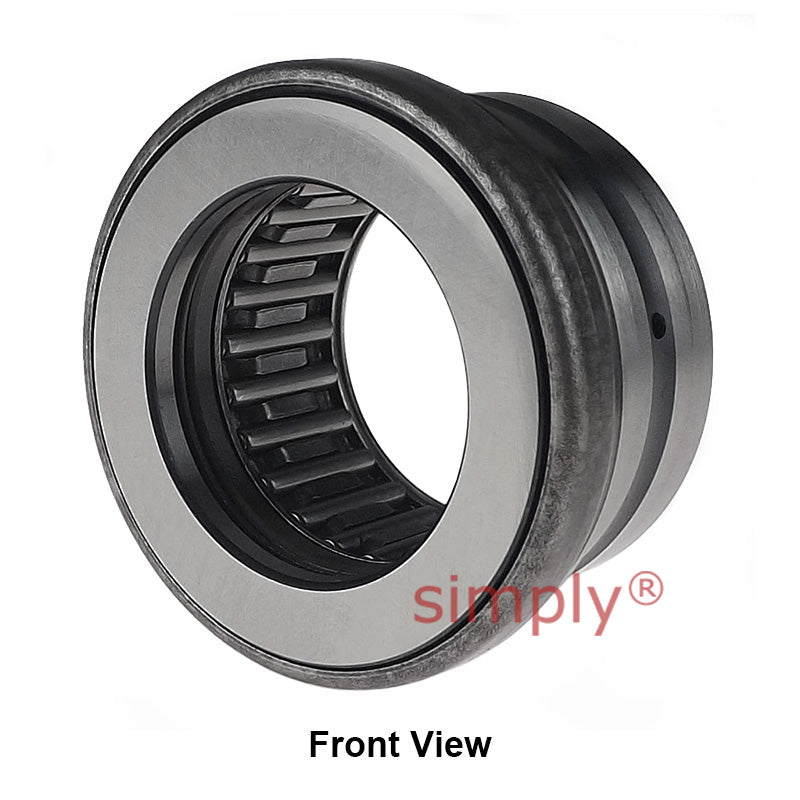

Nadella RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days
Nadella RAXPZ417 Combined Bearing with Incorporated Thrust Plate 17x26x23mm Allow 2-3 Days
Regular price
€345,48
ex VAT
Regular price
Sale price
€345,48
ex VAT
In stock
Price Break
5+
€342,03
10+
€328,21
20+
€321,30
50+
€310,93
100+
€304,02
500+
€286,75
1000+
€241,84
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 23mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 26mm |
| C | 23mm |
| da | 17mm |
| Da | 30.4mm |
| C1 | 7mm |
| C2 | 8mm |
| rs min | 0.65mm |
| Radial dynamic load | 11.8 kN |
| Radial static load | 16.3 kN |
| Axial dynamic load | 8.1 kN |
| Axial static load | 23 kN |
| Speed rating | 10500 rpm |
| Weight | 0.048 kg |
