SKU: RCSMB25/65-FA106-INA

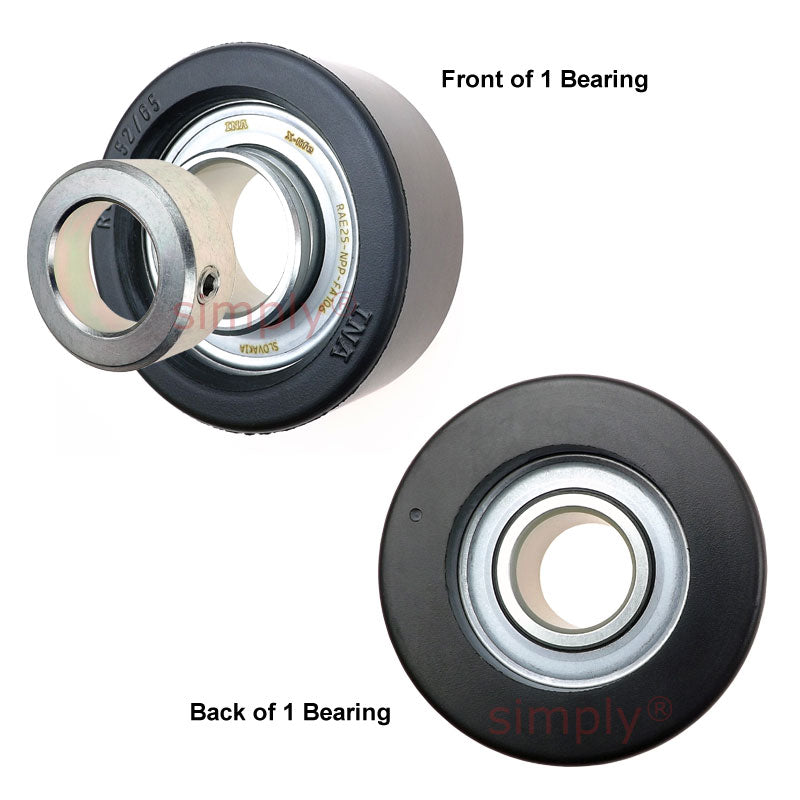

INA RCSMB25/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x65.1x31mm
INA RCSMB25/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x65.1x31mm
Regular price
€41,12
ex VAT
Regular price
Sale price
€41,12
ex VAT
In stock
Price Break
10+
€36,60
19+
€34,54
29+
€34,13
39+
€33,72
49+
€33,31
74+
€32,90
99+
€30,84
199+
€30,43
249+
€30,02
499+
€29,61
999+
€28,78
Couldn't load pickup availability
Description
Description
|
INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 65.1mm
- Width:
- 31mm
- Type:
- Parallel Outer
Technical
Technical
| d | 25mm |
|---|---|
| D | 65.1mm |
| B1 | 31mm |
| C | 25.4mm |
| D2 | 46mm |
| d3 max | 37.5mm |
| P | 12.7mm |
| S1 | 23.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1400 N |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Designation of bearing | 331064 |
| Weight | 0.24 kg |
