SKU: RNA0-20X28X13-NTN

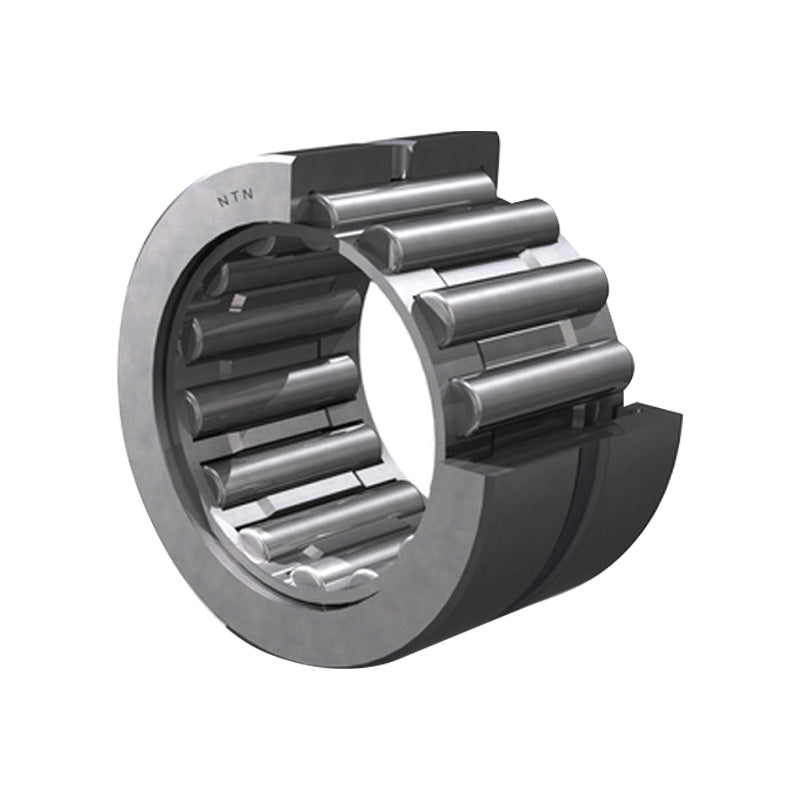

NTN RNA0-20X28X13 Seperable Machined Needle Roller Bearing no Shaft Sleeve 20x28x13mm - Allow 2-3 Days

NTN RNA0-20X28X13 Seperable Machined Needle Roller Bearing no Shaft Sleeve 20x28x13mm - Allow 2-3 Days
Regular price €12,94 ex VAT
Regular price Sale price €12,94 ex VAT
Sale Sold out

In stock

Price Break
3+ €10,96
4+ €10,52
9+ €10,30
19+ €9,96
49+ €9,74
99+ €9,19
499+ €7,75
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 20mm
D - Outside diameter 28mm
C - Width of bearing, drawn cup or outer ring 13mm
E - Upper roller diameter 24mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 10 kN
C0r - Static load rating 14.3 kN
N - Grease lubrication limit speed 13000 tr/min
N - Oil lubrication limit speed 20000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 23.6mm
Da max - Outer ring maximum shoulder diameter 26mm
Db max - Outer ring maximum smooth shaft shoulder diameter 20.4mm
ras max - Maximum shaft & housing fillet radius 0.3mm
