SKU: RNA0-70X90X30-NTN

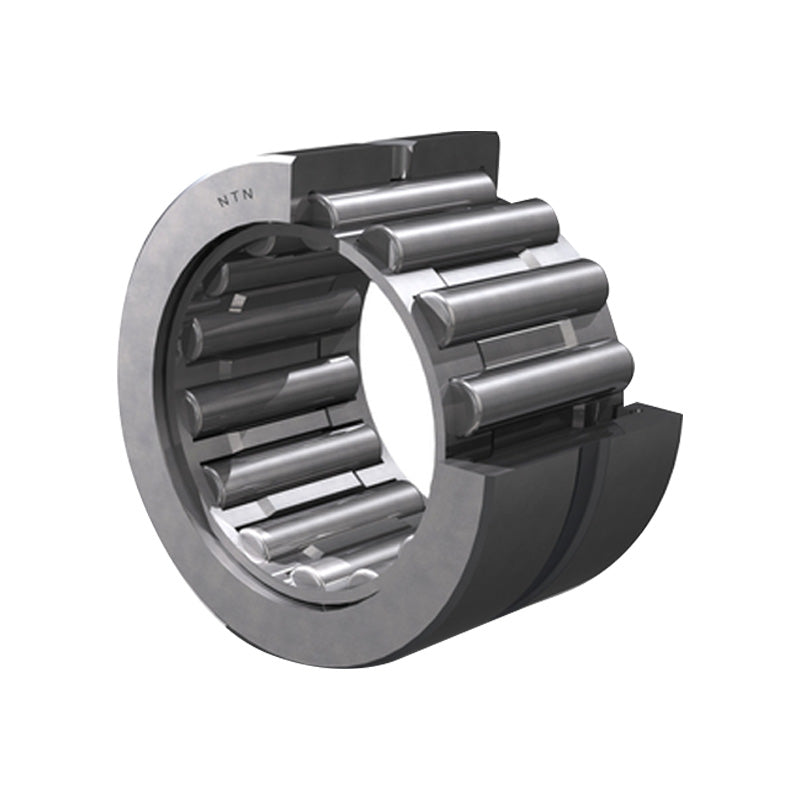

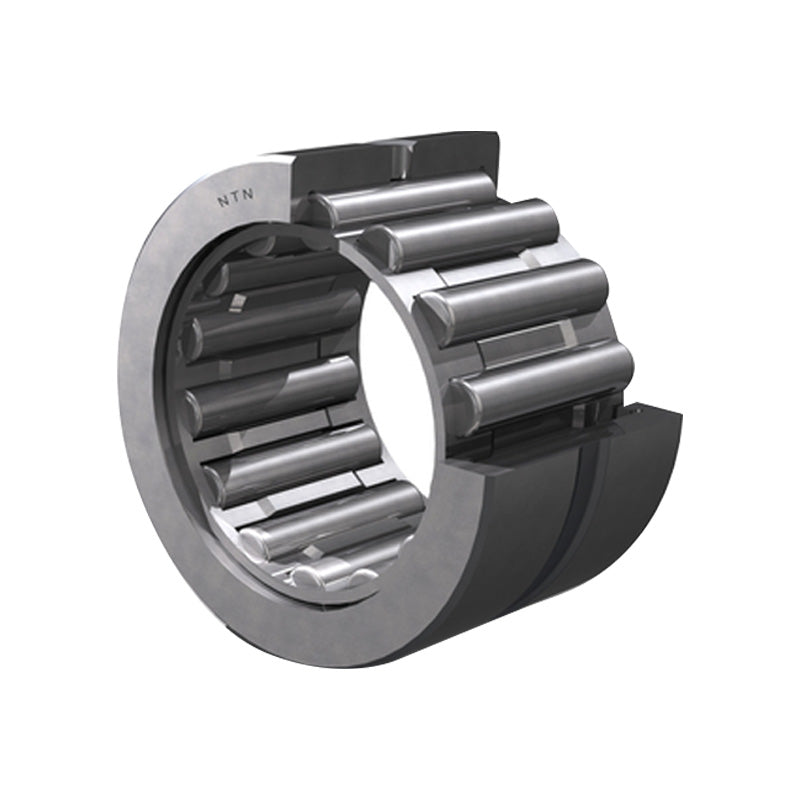

NTN RNA0-70X90X30 Seperable Machined Needle Roller Bearing no Shaft Sleeve 70x90x30mm - Allow 2-3 Days

NTN RNA0-70X90X30 Seperable Machined Needle Roller Bearing no Shaft Sleeve 70x90x30mm - Allow 2-3 Days
Regular price €64,76 ex VAT
Regular price Sale price €64,76 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,87
4+ €52,65
9+ €51,54
19+ €49,88
49+ €48,77
99+ €46,00
499+ €38,79
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 70mm
D - Outside diameter 90mm
C - Width of bearing, drawn cup or outer ring 30mm
E - Upper roller diameter 78mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 65.5 kN
C0r - Static load rating 149 kN
N - Grease lubrication limit speed 3800 tr/min
N - Oil lubrication limit speed 4500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 77.2mm
Da max - Outer ring maximum shoulder diameter 85mm
Db max - Outer ring maximum smooth shaft shoulder diameter 71mm
ras max - Maximum shaft & housing fillet radius 1mm
