SKU: RNA0-80X100X30-NTN

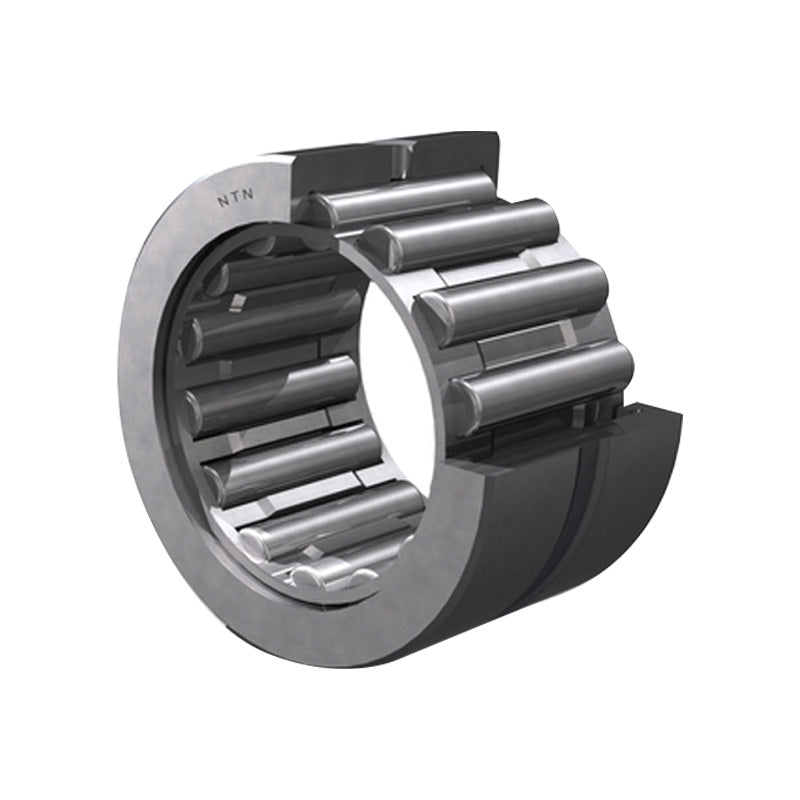

NTN RNA0-80X100X30 Seperable Machined Needle Roller Bearing no Shaft Sleeve 80x100x30mm - Allow 2-3 Days

NTN RNA0-80X100X30 Seperable Machined Needle Roller Bearing no Shaft Sleeve 80x100x30mm - Allow 2-3 Days
Regular price €103,62 ex VAT
Regular price Sale price €103,62 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,78
4+ €84,24
9+ €82,46
19+ €79,80
49+ €78,03
99+ €73,60
499+ €62,07
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 80mm
D - Outside diameter 100mm
C - Width of bearing, drawn cup or outer ring 30mm
E - Upper roller diameter 88mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 69 kN
C0r - Static load rating 166 kN
N - Grease lubrication limit speed 3300 tr/min
N - Oil lubrication limit speed 5000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 87.2mm
Da max - Outer ring maximum shoulder diameter 95mm
Db max - Outer ring maximum smooth shaft shoulder diameter 81mm
ras max - Maximum shaft & housing fillet radius 1mm
