SKU: RNA4848-NTN

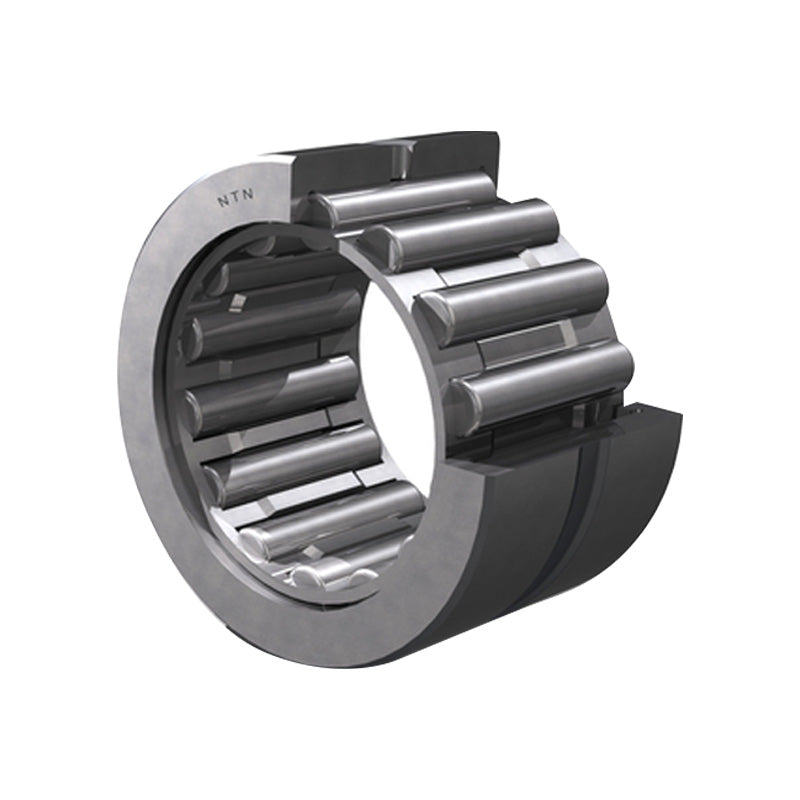

NTN RNA4848 Machined Needle Roller Bearing no Shaft Sleeve 265x300x60mm - Allow 2-3 Days

NTN RNA4848 Machined Needle Roller Bearing no Shaft Sleeve 265x300x60mm - Allow 2-3 Days
Regular price €941,00 ex VAT
Regular price Sale price €941,00 ex VAT
Sale Sold out

In stock

Price Break
3+ €764,98
4+ €724,72
9+ €684,45
19+ €644,19
49+ €628,09
99+ €611,98
499+ €531,46
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 265mm
D - Outside diameter 300mm
C - Width of bearing, drawn cup or outer ring 60mm
rs - Minimum fillet radius 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 4mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 360 kN
C0r - Static load rating 1080 kN
N - Grease lubrication limit speed 1000 tr/min
N - Oil lubrication limit speed 1500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 291mm
ras max - Maximum shaft & housing fillet radius 2mm
