SKU: RNA4901LL/3AS-NTN

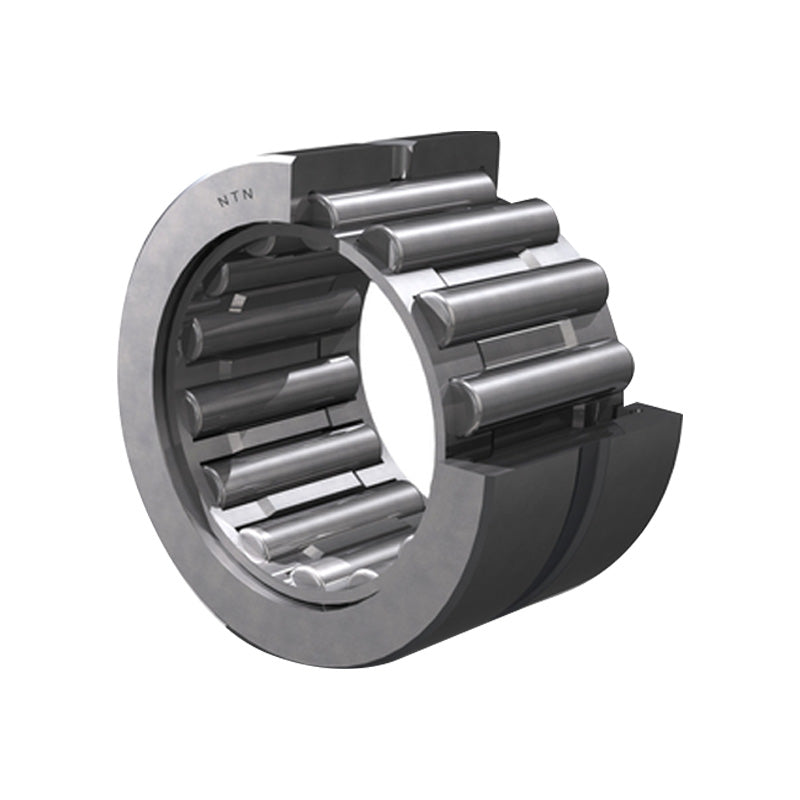

NTN RNA4901LL/3AS Machined Needle Roller Bearing no Shaft Sleeve 16x24x13mm

NTN RNA4901LL/3AS Machined Needle Roller Bearing no Shaft Sleeve 16x24x13mm
Regular price €17,79 ex VAT
Regular price Sale price €17,79 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,55
4+ €12,78
9+ €12,63
19+ €12,48
49+ €12,33
99+ €12,18
499+ €11,42
999+ €11,26
1999+ €11,11
2999+ €10,96
4999+ €10,65
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 24mm
C - Width of bearing, drawn cup or outer ring 13mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 7.75 kN
C0r - Static load rating 9.7 kN
N - Grease lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
Da max - Outer ring maximum shoulder diameter 18mm
Db max - Outer ring maximum smooth shaft shoulder diameter 22mm
ras max - Maximum shaft & housing fillet radius 0.3mm
