SKU: RNA4903-EU

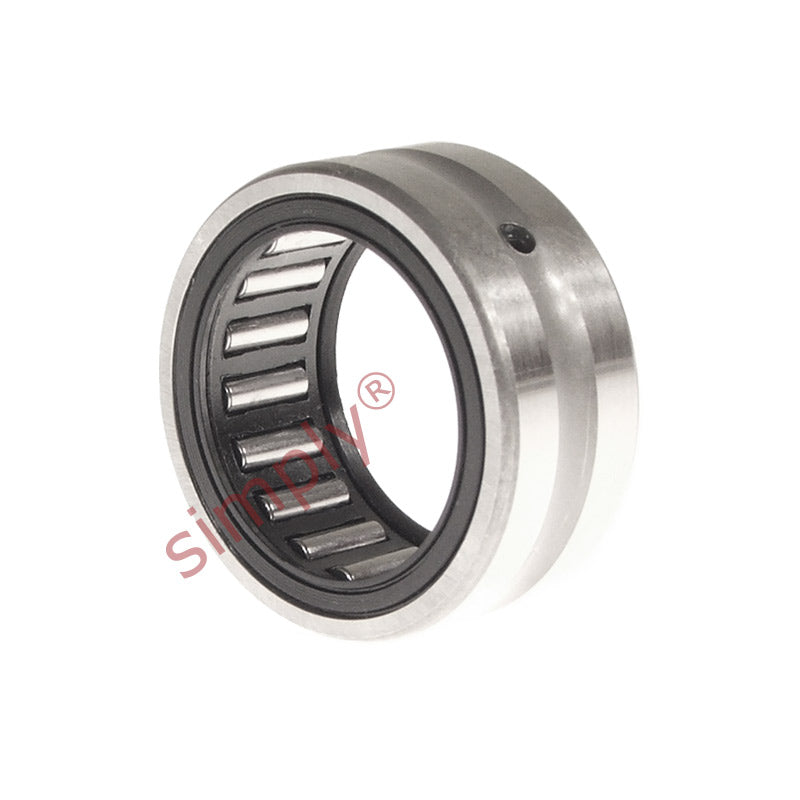

RNA4903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x13mm
RNA4903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x13mm
Regular price
€15,07
ex VAT
Regular price
Sale price
€15,07
ex VAT
In stock
Price Break
10+
€13,41
19+
€12,66
29+
€12,51
39+
€12,36
49+
€12,21
74+
€12,06
99+
€11,30
199+
€11,15
249+
€11,00
499+
€10,85
999+
€10,55
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 13mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 13mm |
| Dynamic load C | 11400 N |
| Static load Co | 16300 N |
| Fatigue load limit Pu | 1960 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 22 g |
