SKU: RNA4904RCT-NTN

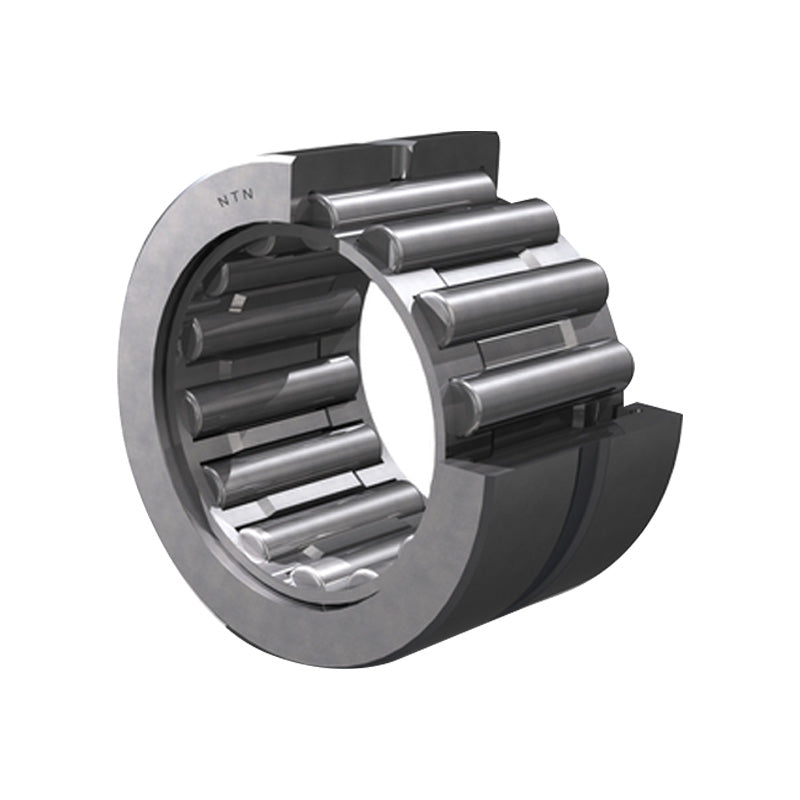

NTN RNA4904RCT Machined Needle Roller Bearing no Shaft Sleeve 25x37x17mm

NTN RNA4904RCT Machined Needle Roller Bearing no Shaft Sleeve 25x37x17mm
Regular price €14,83 ex VAT
Regular price Sale price €14,83 ex VAT
Sale Sold out

In stock

Price Break
3+ €11,29
4+ €10,66
9+ €10,53
19+ €10,41
49+ €10,28
99+ €10,15
499+ €9,52
999+ €9,39
1999+ €9,26
2999+ €9,14
4999+ €8,88
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 25mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 17mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 21.3 kN
C0r - Static load rating 25.5 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 16000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 35mm
ras max - Maximum shaft & housing fillet radius 0.3mm
